Product Details:
|
| Product Name: | Stainless Steel Flange | Standard: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Material: | Stainless Steel | Size: | 1/2' ~ 6' |
| Application: | Oil,Petroleum,Chemical | Packing: | Wooden Box /Poly Wood Box |
| Highlight: | Shipbuilding Stainless Steel Flanges,DN80 Stainless Steel Flanges,OD 200MM Stainless Steel Flanges |
||

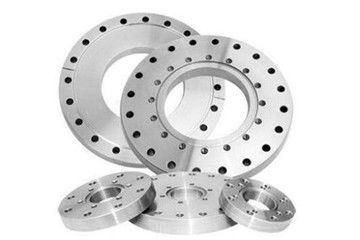

Stainless steel flange is a common pipe fittings, with excellent performance, also known as the flange disc, is the connection between pipe end and pipe end and valve components. Both sides of the flange are connected with the pipe end, and the flange itself has loopholes. It is widely used in petroleum, chemical industry, nuclear power station, food manufacturing, construction, shipbuilding, paper making, medicine and other industries.
Stainless steel flange is in the process of welding, it is necessary to place flange cover to prevent corrosion, welding current is not too large, to ensure rapid cooling, to a certain extent, can reduce corrosion.
Stainless steel flanges suppliers Stainless steel flange technical data sheet as below:
| inch | Nominal diameter | 10kg=l. 0MPa | ||||
| outer diameter | Bolt hole distance | Bolt diameter | Bolt hole number | Flange thickness | ||
| 3/8 | DN10 | 50 | 60 | 14 | 4 | 14 |
| 1/2 | DN15 | 59 | 65 | 14 | 4 | 14 |
| 3/4 | DN20 | 105 | 75 | 14 | 4 | 16 |
| 1 | DN25 | 115 | 85 | 14 | 4 | 16 |
| 1¼ | DN32 | 140 | 100 | 18 | 4 | 18 |
| 1½ | DN40 | 150 | 110 | 18 | 4 | 18 |
| 2 | DN50 | 165 | 125 | 18 | 4 | 20 |
| 2½ | DN65 | 185 | 145 | 18 | 4 | 20 |
| 3 | DN80 | 200 | 160 | 18 | 8 | 20 |
Standard:GB / ANSI /JIS / DIN
Material:Stainless Steel
Size:1/2' ~ 6'
Stainless steel flange uses stainless steel as raw material metal, stainless steel itself has excellent performance, not easy to corrosion, pitting, rust, wear. Stainless steel is one of the highest strength metal materials used in construction. Stainless steel has good corrosion resistance, so it can permanently maintain the engineering integrity of structural components. The flange of chromium stainless steel press has both mechanical strength and high tensile property, and its parts are easy to manufacture, which can meet the needs of architects and structural designers. This kind of flange has the advantages of corrosion resistance, rust prevention and not easy to wear, so it has excellent performance.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 20 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
