Product Details:
|
| Product Name: | Stainless Steel Flange | Material: | SS 316 |
|---|---|---|---|
| Shape: | Equal | Technics: | Welded |
| Type: | Flange | Application: | Connect Pipes |
| Packing: | Wooden Case Or Pallet | Size: | 1/2''-72',1/2"-4 8" |
| High Light: | SS316 Stainless Steel Flanges,DN65 Stainless Steel Flanges,Plate Shaped Stainless Steel Flanges |
||

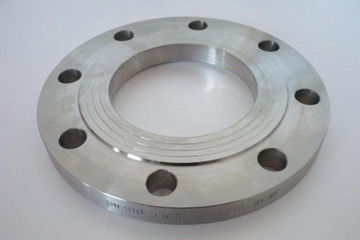

Stainless steel flange is a kind of plate-shaped parts, which is the most common in pipeline engineering. The flanges are used in pairs and matched with the flange on the valve. In pipeline engineering, flange is mainly used for pipeline connection. In the need to connect the pipeline, all kinds of installation of a flange, low-pressure pipeline can use thread flange, 4 kg pressure above the use of welding flange. Add a gasket between the two flange plates, and then fasten them with bolts.
Stainless steel tube flange Stainless steel flange technical data sheet as below:
| Norminal Pipe Size | Outside diameter | Center to End | |||
| D1 | D2 | End to End | |||
| Series A | Series B | Serios A | Series B | L | |
| 15 | 21.3 | 18 | 25 | - | - |
| 20 | 26.9 | 25 | 25 | - | - |
| 25 | 33.7 | 32 | 38 | - | - |
| 32 | 42.4 | 38 | 38 | - | - |
| 40 | 48.3 | 45 | 38 | - | - |
| 50 | 60.3 | 57 | 38 | 44 | 5.5 |
| 65 | 76.1(73) | 76 | 38 | 51 | 7.0 |
| 80 | 88.9 | 89 | 51 | 64 | 76 |
Size:1/2''-72',1/2"-4 8"
Packing:Wooden case or Pallet
Material:SS 316
Stainless steel flange has different thickness and uses different pumps and valves. When connecting with pipes, parts of these equipment are also made into corresponding flange shape, also known as flange connection. All the connecting parts which are connected by bolts in two planes and closed at the same time are generally called "flange", such as the connection of ventilation pipes. This kind of parts can be called "flange parts". But this kind of connection is only a part of the equipment, such as the connection between the flange and the water pump, it is not good to call the water pump "flange parts". Relatively small, such as valves, can be called "flange parts".
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 30 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
