1.6Mpa Tee Schedule 40 Pipe Fittings 50mm Thickness

1.6Mpa Tee Schedule 40 Pipe Fittings 50mm Thickness
1.6Mpa Tee Schedule 40 Pipe Fittings 50mm Thickness

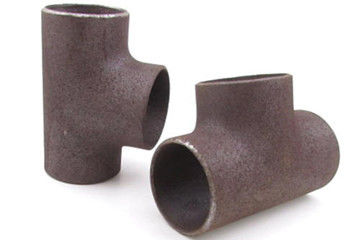

Large Image :  1.6Mpa Tee Schedule 40 Pipe Fittings 50mm Thickness

Product Details:
Place of Origin: China
Brand Name: Hot pressed tee
Certification: ISO9001
Model Number: LJ-PF410
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

1.6Mpa Tee Schedule 40 Pipe Fittings 50mm Thickness

Description
Product Name: Hot Pressed Tee Material: Carbon Steel
Head Code: Equal Size: 1/2''-72',1/2"-4 8",1/2' ~ 6'
Application: Connect Pipes Standard: DIN,JIS,ANSI,ASME,GB
Thickness: 2mm-50mm Working Pressure: 1.6Mpa
High Light:

1.6Mpa Schedule 40 Pipe Fittings

,

50mm Carbon Steel Buttweld Fittings

,

Tee Carbon Steel Buttweld Fittings

Schedule 40 pipe fittings Hot pressed tee

Description


Hot pressed tee, the metal of its branch pipe is compensated by the radial movement of tube blank, so it is also called radial compensation process. Because the tee is pressed after heating, the tonnage of equipment required for material forming is reduced. The hot pressing tee has wide adaptability to materials, which is suitable for low carbon steel, alloy steel and stainless steel; especially for the tee with large diameter and thick pipe wall, this forming process is usually used.

Technical data sheet


Schedule 40 pipe fittings Hot pressed tee technical data sheet as below:

Nominal Diameter Outside Diameter Center to End
D1 D2
DN NPS Series A Series B Series A Series B C M
15x15x15 1/2x1/2x1/2 21.3 18 21.3 18 25 25
15x15x10 1/2x1/2x3/8 21.3 18 17.3 14 25 25
15x15x8 1/2x1/2x1/4 21.3 18 13.7 10 25 25
20x20x20 3/4x3/4x3/4 26.9 25 26.9 25 29 29
20x20x15 3/4x3/4x1/2 26.9 25 21.3 18 29 29
20x20x10 3/4x3/4x3/8 26.9 25 17.3 14 29 29
25x25x25 1x1x1 33.7 32 33.7 32 38 38
25x25x20 1x1x3/4 33.7 32 26.9 25 38 38
25x25x15 1x1x1/2 33.7 32 21.3 18 38 38
32x32x32 1.1/4x1.1/4x1.1/4 42.4 38 42.4 38 48 48
32x32x25 1.1/4x1.1/4x1 42.4 38 33.7 32 48 48
32x32x20 1.1/4x1.1/4x3/4 42.4 38 26.9 25 48 48
32x32x15 1.1/4x1.1/4x1/2 42.4 38 21.3 18 48 48
40x40x40 1.1/2x1.1/2x1.1/2 48.3 45 48.3 45 57 57
40x40x32 1.1/2x1.1/2x1.1/4 48.3 45 42.4 38 57 57

Specification


Size:1/2''-72',1/2"-4 8",1/2' ~ 6'
Standard:DIN,JIS,ANSI,ASME,GB
Thickness:2mm-50mm

Characteristic


Hot pressed tee is its corrosion depends on chromium, but because chromium is one of the components of steel, so the protection method is not the same. This kind of closely adhered chromium rich oxide can protect the surface of tee from further oxidation. This kind of oxide layer is very thin, through which we can see the natural luster of the surface of the tee, which makes the carbon steel tee have a unique surface. Moreover, if the surface layer is damaged, the exposed steel surface will react with the atmosphere for self repair, and the oxide "passive film" will be formed again to continue to play a protective role.

Package


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time


Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
