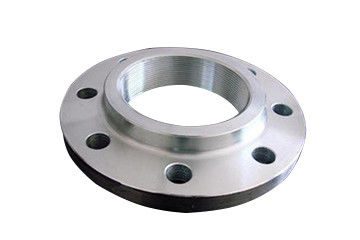

Pipeline Engineering Ss316 Threaded Stainless Steel Flanges

Pipeline Engineering Ss316 Threaded Stainless Steel Flanges
Pipeline Engineering Ss316 Threaded Stainless Steel Flanges Pipeline Engineering Ss316 Threaded Stainless Steel Flanges

Large Image :  Pipeline Engineering Ss316 Threaded Stainless Steel Flanges

Product Details:
Place of Origin: China
Brand Name: Threaded flange
Certification: ISO9001
Model Number: LJ-PF060
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Pipeline Engineering Ss316 Threaded Stainless Steel Flanges

Description
Product Name:: Threaded Flange Size:: Full-size
Application:: Pipeline Engineering Standard:: GB / ANSI /JIS / DIN
Application: Industrial,cosmetic Type: Threaded Flange
High Light:

Ss316 Flange

,

ss Stainless Pipe Flanges

Description


Threaded flange is a kind of flange which uses thread to connect with pipeline. It is a kind of non welding flange that the inner hole of flange is processed into pipe thread and connected with pipe with thread.The production of a part may be very important to the operation of a machine, but if it is only a single part, its value may not exist.

Therefore, people use flange to put these large and small parts together into a complete machine or structure, and play the role of each part as much as possible. Screw tapping flange is one of the flange.The threaded flange has the characteristics of convenient installation and maintenance.

Because it can be disassembled and tightened, the use of this flange is more convenient for the maintenance and cleaning of the machine.However, it is not suitable to use the threaded flange in any case.

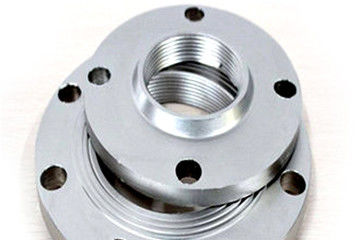

Pipeline Engineering Ss316 Threaded Stainless Steel Flanges 0

Specification


1. Because the temperature fluctuation in the threaded pipe is relatively large, it is strongly affected by the environment, so it is better to weld the flange in the environment above 20 ℃ or below - 40 ℃.

2. For the facilities with different specifications, the threaded flange with different sizes can be used.

3. Our country's regulations on the threaded flange include the specifications, forms and size parameters: the inner diameter is 48 to 408.6mm, with a wide range.

4. Flange outer diameter is about 50 - 840, bolt thickness 14 - 52 bolt hole distance is 4 - 36.

5. In the refrigeration and ventilation equipment, the production of screw flange is very common, every refrigeration and ventilation equipment will have the appearance of screw flange.

Pipeline Engineering Ss316 Threaded Stainless Steel Flanges 1

Characteristic


1. With a threaded flange, of course, there must be a threaded pipe to match in order to be equipped successfully.

2.  In order to meet the size of the threaded flange, the threaded pipe also has a relatively wide range of specifications.

3. These threaded pipes are generally made of the same material as the threaded flange to achieve the same quality and complete effect.

4. At present, both the threaded flange and the threaded pipe are basically made of steel material, because the steel material has strong compression resistance and good corrosion resistance compared with other materials.

5.  As the steel material is relatively hard, it is very convenient and not easy to break in the process of installation.

6. It has achieved the ideal effect of using the threaded flange and is an ideal material for making the threaded flange.

7.  The use of the threaded flange not only greatly extends the service life of the equipment and facilities, but also brings endless convenience for maintenance.

Display Threaded flange
Texture of material Stainless steel, carbon steel, nickel steel, etc
Product specification DN15-DN2000
Size Full-size
Manufacturing standard GB / ANSI /JIS / DIN
Category Machine parts
Product color Metallic color

Application


1,  Nominal diameter of threaded flange: DN8 ~ DN100 working pressure: 1.0 ~ 2.5 (MPA) plate type threaded flange material: stainless steel, carbon steel, alloy steel.

2,  Purpose of threaded flange: it is suitable for locking and sealing of industrial and civil pipe threads, such as fire fighting, gas, hot and cold water, air conditioning, air pressure pipe, oil pipe, instrument, hydraulic pipe, etc.

Pipeline Engineering Ss316 Threaded Stainless Steel Flanges 2

Package


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized

Delivery time


Our Pipeline Engineering Ss316 Threaded Stainless Steel Flanges factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
