Product Details:
|
| Product Name: | Stainless Steel Flange | Standard: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Material: | SS304 SS316L | Size: | 1/2' ~ 6' |
| Application: | Connect Pipes | Packing: | Wooden Case |
| High Light: | SS316L Stainless Steel Flanges,ANSI 1/2' Stainless Steel Flanges,DN10 Stainless Steel Flanges |
||

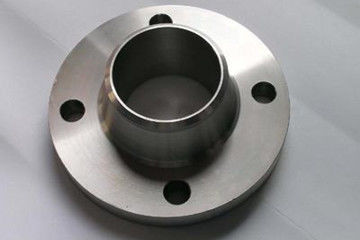

Stainless steel flange, as the name implies, is the use of stainless steel as the raw material to produce flange accessories. Flange not only has a beautiful name, but also its shape is very attractive. Its overall appearance is a cylindrical disc state. It is a part that needs to be used in pipe connection. Whether it is plastic pipe or stainless steel pipe, flange can be used for connection.
When connecting two pipes with stainless steel flange, the tail of one steel pipe and the head of another steel pipe of the same type are connected by flange. Different thickness of steel pipe equipped with different flange is not the same, in general, the diameter of flange end should be selected according to the thickness of steel pipe.
Industrial Steel Pipe Fittings Seamless elbow technical data sheet as below:
| Socket welding flange | ||||||
| DN | Outer diameter of steel pipe | Connection size | ||||
| Flange outer diameter | Diameter of bolt hole center circle | Bolt hole diameter | Number of bolt holes | |||
| A | B | |||||
| 10 | 17.2 | 14 | 100 | 70 | 14 | 4 |
| 15 | 21.3 | 18 | 105 | 75 | 14 | 4 |
| 20 | 26.9 | 25 | 130 | 90 | 18 | 4 |
| 25 | 33.7 | 32 | 140 | 100 | 18 | 4 |
| 32 | 42.4 | 38 | 155 | 110 | 22 | 4 |
| 40 | 48.3 | 45 | 170 | 125 | 22 | 4 |
| 50 | 60.3 | 57 | 180 | 135 | 22 | 4 |
Stainless steel flanges are similar in shape. The whole flange is a kind of cylindrical stool shape. There are a circle of round holes on the steel plates at both ends of the cylinder. They are all holes of the same size and arranged neatly on the periphery of the steel sheet. In order to connect the two flanges, bolts are needed. Gasket is used to block the connection of bolts and two flanges, so that the flange can have very good sealing performance.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 45 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
