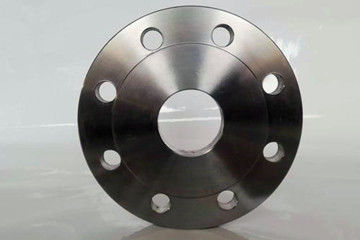

Product Details:
|
| Product Name: | 316 Stainless Steel Flange | Standard: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Material: | Stainless Steel | Size: | 1/8' ~ 6' |
| Application: | Oil,gas And So On | Packing: | Pallet Or As Customer's Requirement |
| High Light: | 1/8' Ss316 Flange,Corrosion Resistance Ss316 Flange,Seawater Equipment Ss316 Flange |
||
The 316 stainless steel flange has excellent corrosion resistance, atmospheric corrosion resistance and high temperature strength due to the addition of molybdenum, which can be used in harsh conditions; it has excellent work hardening property and no magnetism),.
304 stainless steel flange and 316 stainless steel flange have little difference in chemical corrosion resistance, but they are different in some specific media.
The corrosion resistance of 316 flange is better than that of 304 flange, and it has good corrosion resistance in pulp and paper production process. Moreover, 316 flange is also resistant to marine and corrosive industrial atmosphere.
Standard:GB / ANSI /JIS / DIN
Packing:pallet or as customer's requirement
Size:1/8' ~ 6'
316 stainless steel flange is used in seawater equipment, chemical, dye, papermaking, oxalic acid, fertilizer and other production equipment; photography, food industry, coastal facilities, ropes, CD rods, bolts, nuts.
316 flange has almost become the standard material of food and beverage industry. Due to the worldwide shortage of molybdenum and more nickel content in 316 flange, the price of 316 stainless steel is more expensive than that of 304 stainless steel.
Stainless Steel Flanges 316 stainless steel flange technical data sheet as below:
| inch | Nominal diameter | 10kg=l. 0MPa | ||||
| outer diameter | Bolt hole distance | Bolt diameter | Bolt hole number | Flange thickness | ||
| 3/8 | DN10 | 50 | 60 | 14 | 4 | 14 |
| 1/2 | DN15 | 59 | 65 | 14 | 4 | 14 |
| 3/4 | DN20 | 105 | 75 | 14 | 4 | 16 |
| 1 | DN25 | 115 | 85 | 14 | 4 | 16 |
| 1¼ | DN32 | 140 | 100 | 18 | 4 | 18 |
| 1½ | DN40 | 150 | 110 | 18 | 4 | 18 |
| 2 | DN50 | 165 | 125 | 18 | 4 | 20 |
| 2½ | DN65 | 185 | 145 | 18 | 4 | 20 |
| 3 | DN80 | 200 | 160 | 18 | 8 | 20 |
| 3½ | DN100 | 220 | 180 | 18 | 8 | 22 |
| 4 | DN125 | 250 | 210 | 18 | 8 | 22 |
| 5 | DN150 | 285 | 240 | 22 | 8 | 24 |
| 6 | DN200 | 340 | 295 | 22 | 8 | 24 |
| 8 | DN250 | 395 | 350 | 22 | 12 | 26 |
| 10 | DN300 | 445 | 400 | 22 | 12 | 28 |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 20 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
