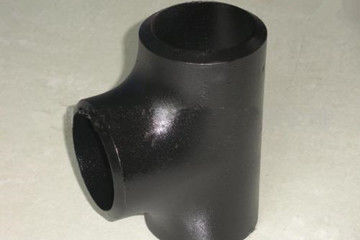

Forged Pipe Reducing Tee Cs Carbon Steel Buttweld Fittings

Forged Pipe Reducing Tee Cs Carbon Steel Buttweld Fittings
Forged Pipe Reducing Tee Cs Carbon Steel Buttweld Fittings

Large Image :  Forged Pipe Reducing Tee Cs Carbon Steel Buttweld Fittings

Product Details:
Place of Origin: China
Brand Name: Carbon steel butt welding reducing tee
Certification: ISO9001
Model Number: LJ-PF006
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Forged Pipe Reducing Tee Cs Carbon Steel Buttweld Fittings

Description
Product Name:: Carbon Steel Butt Welding Reducing Tee Type:: Tee
Standard:: GB / ANSI /JIS / DIN Material:: Carbon Steel
Technology:: Hydraulic Bulging And Hot Pressing Shape:: Reducing
High Light:

cs Butt Weld Reducer

,

cs Butt Weld Tee

Description


Tee is a kind of pipe fitting with one inlet and two outlets; or two inlets and one outlet, which can be divided into T shape and Y shape, and can also be divided into equal diameter tee and reduced diameter tee, which is used for the convergence of three same or different pipelines. Tee is mainly used to change the direction of the fluid pipe connector. Reducing tee is a section of main pipe plus a small branch pipe. Obviously, two big sizes are main pipes, and the small size in the middle is branch pipe. Reducing tee is a kind of tee, which is used at branch pipe of main pipeline. In industry, the pressure requirement of reducing tee pipe is higher, the maximum pressure can reach 600 kg, and the pressure of water pipe in life is lower, generally 16 kg. Reducing tee is generally not used in pure oxygen pipeline. This kind of pipeline generally has pressure, and the oxygen activity is greater at this time. For example, if the reducing tee is used, as long as the sundries in the pipeline move with the oxygen air flow, the change of the pipe diameter and the change of the flow rate may cause the collision between the sundries and the pipe to produce the fire source or the electrostatic discharge due to the change of the flow rate, it may cause the fire and explosion of the pure oxygen pipe.



Forged Pipe Reducing Tee Cs Carbon Steel Buttweld Fittings 0



Butt welding reducing tee is a steel hot pressed or forged elbow. Its connection form is directly butt welding the tee and steel pipe. The production process of reducing tee includes hydraulic bulging and hot press bulging. Hydraulic bulging is a forming process of expanding branch pipe by axial compensation of metal material. This production method can be formed in one time with high production efficiency. However, due to the large tonnage of equipment required by the process, it is currently mainly used in the manufacture of standard wall thickness tee less than dn400 in China. Hot forming is that the tube blank is compressed radially under the action of pressure. In the process of radial compression, the metal flows towards the branch pipe and forms the branch pipe under the stretch of the die.

Forged Pipe Reducing Tee Cs Carbon Steel Buttweld Fittings 1

Specification


Standard: GB / t12459, GB / T13401, ASME b16.9

Material: carbon steel, ASTM / ASME a234 wpb-wpc

Size range: Seamless tee: 1 / 2 "~ 32" DN15 ~ DN800,Slotted tee: 6 "~ 60" DN150 ~ DN1500
Thickness: Maximum wall thickness: 200mm

Surface treatment: anti-oil; anti-painting

Technical data sheet




Nominal Diameter Outside Diameter Center to End
DI D2
DN NPS Series A Series B Series A Series B C M
15x15x15 1/2x1/2x1/2 21.3 18 21.3 18 25 25
15x15x10 1/2x1/2x3/8 21.3 18 17.3 14 25 25
15x15x8 1/2x1/2x1/4 21.3 18 13.7 10 25 25
20x20x20 3/4x 3/4x3/4 26.9 25 26.9 25 29 29
20x20x15 3/4x3/4x1/2 26.9 25 21.3 18 29 29
20x20x10 3/4x3/4x3/8 26.9 25 17.3 14 29 29
25x25x25 1x1x1 33.7 32 33.7 32 38 33
25x25*20 1x1x 3/4 33.7 32 26.9 25 38 33
25x25x15 lx 1x 1/2 33.7 32 21.3 18 38 33
32x32x32 1.1/4x1.1/4x1. 1/4 424 33 42.4 33 43 48
32x32x25 1.1/4x1.1/4x1 424 33 33.7 32 43 48
32x32x20 1.1/4x1.l/4x3/4 424 33 26.9 25 43 48
32x32x15 1.1/4x1.1/4x1/2 424 33 21.3 18 43 48
40x40x40 1.1/2x1.1/2x1. 1/2 43.3 45 48.3 45 57 57
40x40x32 1.1/2x1.1/2x1. 1/4 43.3 45 42.4 33 57 57
40x40x25 1.1/2x1.1/2x1 43.3 45 33.7 32 57 57
40x40x20 1.1/2x 1.l/2x3/4 43.3 45 26.9 25 57 57
40x40x15 1.1/2x1.l/2xl/2 43.3 45 21.3 18 57 57
50*5050 2x2x2 60.3 57 60.3 57 64 64
50x50*40 2x2x1.1/2 60.3 57 48.3 45 64 60
50x50x32 2x2x1.1/4 60.3 57 42.4 33 64 57
50x50x25 2x2x1 60.3 57 33.7 32 64 51
50x50x20 2x 2x3/4 60.3 57 26.9 25 64 44
65x65x65 2.1/2x2/1/2x2 1/2 73.0 76 73.0 76 76 76
65x65x50 2 1/2x2/1/2x2 73.0 76 60.3 57 76 70
65x65x40 2.1/2x2/1/2x11/2 73.0 76 48.3 45 76 67



Package


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized


Delivery time


Our factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
