Product Details:
|
| Product Name:: | Carbon Steel Butt Welding Cross | Size:: | Full-size |
|---|---|---|---|
| Standard:: | GB / ANSI /JIS / DIN | Connection Mode：: | Welding |
| Characteristic：: | Wear And Corrosion Resistance | Usage: | Oil Gas Water Industrial |
| High Light: | Butt Welding Carbon Steel Cross,ANSI Carbon Steel Cross |
||

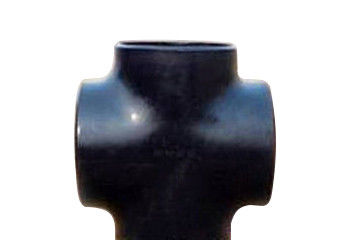

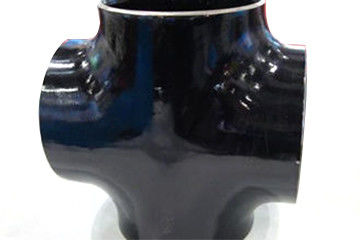

The carbon steel cross is a pipe connection, which is used at the branch pipe of the main pipe. Carbon steel cross tee can be divided into equal diameter and reducing diameter, and the nozzle ends of equal diameter cross tee are the same size. The main pipe nozzle size of reducing cross tee is the same, and the nozzle size of branch pipe is smaller than that of main pipe. Carbon steel cross generally contains a small amount of silicon, manganese, sulfur, phosphorus and other elements in addition to carbon. Carbon steel can be divided into carbon structural steel, carbon tool steel and free cutting structural steel according to its use. Cross made of different materials will have different structural characteristics. At present, there are two kinds of processes commonly used in the manufacture of carbon steel cross by seamless pipe, i.e. hydraulic bulging and hot pressing.
The hydraulic bulging of carbon steel cross tee is a forming process of expanding branch pipe by axial compensation of metal material. The process is to use a special hydraulic press to inject liquid into the tube blank with the same diameter as the cross tee, and extrude the tube blank through two horizontal side cylinders of the hydraulic press synchronously. The liquid in the tube blank increases with the volume of the tube blank becoming smaller, and the metal material flows along the inner cavity of the die under the double action of the liquid pressure in the side cylinder and the tube blank and expands the branch pipe. The hydroforming process of carbon steel cross tee can be formed in one time with high production efficiency. Due to the large tonnage of the equipment required for the hydraulic bulging process of the cross, it is mainly used for the manufacture of the standard wall thickness cross less than dn400. The hot forming of the cross tee is to flatten the tube blank larger than the diameter of the cross to the size of the diameter of the cross , and open a hole at the position of the stretching branch pipe.
Material: carbon steel
Size range: DN 15x15x15-50x50x50
Pressure range: 3000 × 6000 × 3
Surface treatment: anti-oil; anti-painting
| Nominal Diameter | Outside Diameter | Center to End | |||||
| D1 | D2 | ||||||
| DN | NPS | Series A | Series B | Series A | Series B | C | M |
| 15x15x15 | 1/2x1/2x1/2 | 21.3 | 18 | 21.3 | 18 | 25 | 25 |
| 15x15x10 | 1/2x1/2x3/8 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
| 15x15x8 | 1/2x1/2x1/4 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
| 20x20x20 | 3/4 x 3/4 x 3/4 | 26.9 | 25 | 26.9 | 25 | 29 | 29 |
| 20x20x15 | 3/4 x 3/4 x 1/2 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
| 20x20x10 | 3/4 x 3/4 x 3/8 | 26.9 | 25 | 17.3 | 14 | 29 | 29 |
| 25x25x25 | 1x1x1 | 33.7 | 32 | 33.7 | 32 | 38 | 38 |
| 25x25x20 | 1x 1x3/4 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
| 25x25x15 | 1x1x1/2 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
| 32x32x32 | 1.1/4x1.1/4x1.1/4 | 42.4 | 38 | 42.4 | 38 | 48 | 48 |
| 32x32x25 | 1.1/4x1.1/4x1 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
| 32x32x20 | 1.1/4x1.1/4x3/4 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
| 32x32x15 | 1.1/4x1.1/4x1/2 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
| 40x40x40 | 1.1/2x1.1/2x1.1/2 | 48.3 | 45 | 48.3 | 45 | 57 | 57 |
| 40x40x32 | 1.1/2x1.1/2x1.1/4 | 48.3 | 45 | 42.4 | 38 | 57 | 57 |
| 40x40x25 | 1.1/2x1.1/2x1 | 48.3 | 45 | 33.7 | 32 | 57 | 57 |
| 40x40x20 | 1.1/2x1.1/2x3/4 | 48.3 | 45 | 26.9 | 25 | 57 | 57 |
| 40x40x15 | 1.1/2x1.1/2x1/2 | 48.3 | 45 | 21.3 | 18 | 57 | 57 |
| 50x50x50 | 2x2x2 | 60.3 | 57 | 60.3 | 57 | 64 | 64 |
| 50x50x40 | 2x2x1.1/2 | 60.3 | 57 | 48.3 | 45 | 64 | 60 |
| 50x50x32 | 2x2x1.1/4 | 60.3 | 57 | 42.4 | 38 | 64 | 57 |
| 50x50x25 | 2x2x1 | 60.3 | 57 | 33.7 | 32 | 64 | 51 |
| 50x50x20 | 2x2x3/4 | 60.3 | 57 | 26.9 | 25 | 64 | 44 |
Carbon steel cross tee is widely used, which can meet the needs of PetroChina, Sinopec, CNOOC, shipping, power, heat, metallurgy, steel, aerospace, natural gas, pharmaceutical, pharmaceutical, alcohol, beverage, water conservancy, chemical engineering and other projects.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized
Our factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
