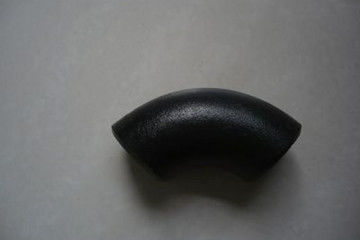

Black Carbon Steel Butt Welded Long Radius Elbow 90 Degree

Black Carbon Steel Butt Welded Long Radius Elbow 90 Degree
Black Carbon Steel Butt Welded Long Radius Elbow 90 Degree

Large Image :  Black Carbon Steel Butt Welded Long Radius Elbow 90 Degree

Product Details:
Place of Origin: China
Brand Name: carbon steel butt welded elbow
Certification: ISO9001
Model Number: LJ-PF002
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Black Carbon Steel Butt Welded Long Radius Elbow 90 Degree

Product Name:: Butt Welding Elbow Size:: Full-size
Standard:: GB / ANSI /JIS / DIN Application:: Pipeline Engineering
Material:: Carbon Steel Shape:: Equal
High Light:

cs Long Bend Elbow


Long Radius Pipe Bends


Butt welding elbow is a steel hot pressed or forged elbow. Its connection form is to directly butt weld the elbow with the steel pipe. Carbon steel butt welding elbow is a kind of pipe fitting widely used in butt welding pipe fittings, also known as carbon steel elbow, which refers to the iron carbon alloy elbow with carbon content less than 2.11%. This is an elbow formed by steel hot pressing or forging technology. The connection method is to butt weld the elbow with the steel pipe, and weld the two work-pieces along the whole end face at the same time by resistance heat. Two welding methods, resistance butt welding and flash butt welding, are usually used. They are of high productivity and easy to realize automation, so they have been widely used. According to the pressure rating, there are about 17 kinds, which are the same as the American steel pipe standards, of which the most commonly used are STD and XS.

Black Carbon Steel Butt Welded Long Radius Elbow 90 Degree 0

According to the angle of elbow, there are 45 degrees, 90 degrees, 180 degrees and other different angles of butt welding elbow. Long radius elbow means that the radius of curvature of the elbow is 1.5 times the diameter of the pipe. It is the most commonly used, and it is also the long radius by default. Where the pressure is high or the flow rate is high, the long radius will be used. If the resistance of solid conveying pipeline is strict, the elbow with larger radius shall be used. Long radius elbows require control of the radius of curvature. For example, if the radius length is 1.5D, the radius of curvature must be within the required tolerance. In order to improve the welding quality, the end is beveled, with a certain angle and a certain edge. This requirement is also relatively strict. There are many requirements for the thickness of the edge, the angle and the deviation range. There are many more items than the pipe fittings in the geometric dimension. The surface quality and mechanical properties of the elbow are basically the same as that of the pipe. For the convenience of welding, the material of the steel of the connected pipe shall be the same.



Display Butt welding elbow
Texture of material carbon steel
Welding mode Butt welding
Size Full-size
Standard STD / XS
Pressure grade 17 pressure levels
Molding method Hot pressing or forging


1,   The products are widely used in petroleum, chemical industry, electric power, metallurgy.

2,   And also used in other pipeline engineering, as well as arc steel structure for construction, large gymnasium, airport, toll station, bridge, curtain wall, ship, park decorative modeling and other industries.

3,   Sewage treatment, chemical industry, thermal industry, pharmaceutical industry, aerospace industry, electric power industry, paper industry, etc.


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized

Delivery time

Our factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
