Product Details:
|
| Material: | Carbon Steel | Connection: | Welding |
|---|---|---|---|
| Size: | 1/2"-48"(DN15-DN1200) | Application: | Gas,Connect Pipes,oil |
| Standard: | DIN,ANSI,ASME,GB | Packing: | Wooden Case Or Pallet |
| High Light: | A105n Lined Carbon Steel Flanges,ASME B16.47 Carbon Steel Flanges,ASME B16.47 lined flange |
||

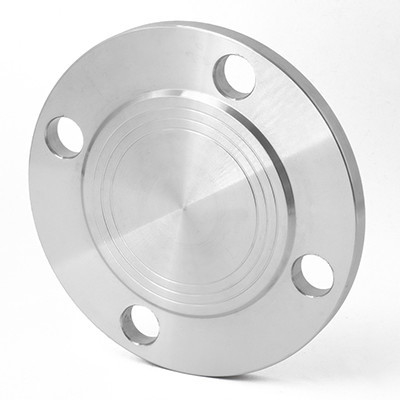

Carbon steel lined flange are used for pipe isolation, and are mostly produced by welding or rolling processes. The flanges produced by these two processes have certain restrictions on bearing pressure. When the working pressure reaches a certain limit, deformation or other faults will occur. Therefore, rolling and welding flanges can only work in an environment with relatively small pressure.
Specification: 1 / 2 "--- 72"
Standard:ASME/ANSI B16.5
Material: 10#, 20#, A3, Q235A
Pressure rating: PN 0.25 -- 42.0 MPa
ASME B16.47 Series B CLASS 900 A105n Carbon steel lined flange technical data sheet as below:
| Nominal size | Connection size | Flange thickness | Dimension of sealing surface | lining thickness | |||||
| Flange outer diameter | Center circle diameter | Bolt hole diameter | Number of bolt holes | d | dl | Convex surface | |||
| 40 | 130 | 100 | 14 | 4 | 14 | 80 | 30 | 3 | 2 |
| 50 | 140 | 110 | 14 | 4 | 14 | 90 | 45 | 3 | 2 |
| 65 | 160 | 130 | 14 | 4 | 14 | 110 | 60 | 3 | 2 |
| 80 | 190 | 150 | 18 | 4 | 16 | 128 | 75 | 3 | 2 |
| 100 | 210 | 170 | 18 | 4 | 16 | 148 | 95 | 3 | 2 |
| 125 | 240 | 200 | 18 | 8 | 18 | 178 | 110 | 3 | 2 |
| 150 | 265 | 225 | 18 | 8 | 18 | 202 | 130 | 3 | 2 |
| 200 | 320 | 280 | 18 | 8 | 20 | 258 | 190 | 4 | 2 |
| 250 | 375 | 335 | 18 | 12 | 22 | 312 | 235 | 4 | 2 |
| 300 | 440 | 395 | 22 | 12 | 22 | 365 | 285 | 5 | 3 |
| 350 | 490 | 445 | 22 | 12 | 22 | 415 | 330 | 5 | 3 |
Carbon steel lined flange can be made into smooth, concave convex and tenon groove sealing surfaces. Smooth butt welding flange is widely used. It is mainly used in welding technology. It has good application characteristics and performance, reasonable structure, large strength and stiffness and good sealing.
Carbon steel lined flange is mainly used in oil and gas pipeline engineering, natural gas pipeline engineering, chemical plant, power plant, shipyard, pharmacy, dairy, beer, beverage, water conservancy, etc.
