Product Details:
|
| Material: | Carbon Steel | Connection: | Welding |
|---|---|---|---|
| Size: | 1/2"-4 8",1/2' ~ 6' | Application: | Gas,Connect Pipes,oil |
| Standard: | DIN,ANSI,ASME,GB | Packing: | Wooden Case Or Pallet |
| High Light: | A694 Carbon Steel Flanges,ASME A105 Carbon Steel Flanges,ASTM A694 SW RF Flange |
||

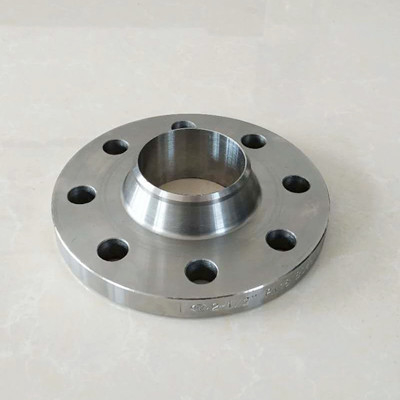

Carbon steel SW flange refers to the flange that is inserted into the flange ring ladder at the end of the pipe and welded at the pipe end and outside. There are two kinds of flanges with neck and without neck. The pipe flange with neck has good rigidity, small welding deformation and good sealing performance. It can be used for occasions with pressure of 1.0 ~ 10.0MPa.
Strength: 0.6-2.5MPA
Diameter: DN15-DN400
Material: A105,16Mn, 20#
Standard:ASTM, ASME B16.5
ASTM/ASME A105 ASTM A694 Socket Welding Carbon steel SW flange technical data sheet as below:
| DN | diameter | Connection size | Flange thickness | inner diameter | Theoretical weight | ||||||
| A | B | D | K | L | M | TH | C | A | B | KG | |
| 15 | 21.3 | 18 | 95 | 65 | 14 | 4 | M12 | 14 | 22 | 19 | 0.68 |
| 20 | 26.9 | 25 | 105 | 75 | 14 | 4 | M12 | 16 | 27.5 | 26 | 0.94 |
| 25 | 33.7 | 32 | 115 | 85 | 14 | 4 | M12 | 16 | 34.7 | 33 | 1.12 |
| 32 | 42.4 | 38 | 140 | 100 | 18 | 4 | M16 | 18 | 43.5 | 39 | 1.86 |
| 40 | 48.3 | 45 | 150 | 110 | 18 | 4 | M16 | 18 | 49.5 | 46 | 2.12 |
| 50 | 603 | 57 | 165 | 125 | 18 | 4 | M16 | 20 | 61.5 | 59 | 2.77 |
| 65 | 76.1 | 76 | 185 | 145 | 18 | 4 | M16 | 20 | 77.5 | 78 | 3.31 |
| 80 | 88.9 | 89 | 200 | 160 | 18 | 8 | M16 | 20 | 90.5 | 91 | 3.59 |
| 100 | 114.3 | 108 | 220 | 180 | 18 | 8 | M16 | 22 | 116 | 110 | 4.57 |
| 125 | 139.7 | 133 | 250 | 210 | 18 | 8 | M16 | 22 | 141.5 | 135 | 5.65 |
| 150 | 168.3 | 159 | 285 | 240 | 22 | 8 | M20 | 24 | 170.5 | 161 | 7.61 |
| 200 | 219.1 | 219 | 340 | 295 | 22 | 8 | M20 | 24 | 221.5 | 222 | 9.24 |
| 250 | 273 | 273 | 395 | 350 | 22 | 12 | M20 | 26 | 276.5 | 247 | 11.9 |
| 300 | 323.9 | 325 | 445 | 400 | 22 | 12 | M20 | 28 | 327.5 | 328 | 14.6 |
Carbon steel SW flange also includes type B flange for vessels, which is used in occasions with high sealing requirements, and is mainly used for pressure pipes above 4kg. For the pipes to be connected, install a flange, add a gasket between the two flanges, and then fasten them with bolts.
Carbon steel SW flange is widely used in chemical industry, construction, water supply, drainage, petroleum, fire protection, electric power, aerospace, shipbuilding and other basic projects.
