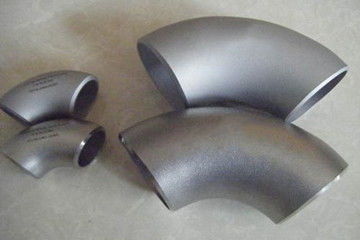

Product Details:
|
| Product Name: | Stainless Steel Elbow | Material: | Stainless Steel |
|---|---|---|---|
| Connection: | Welding | Shape: | Equal |
| Size: | 40mm,25mm,200mm | Standard: | DIN,BSP,ANSI,AWWA |
| Application: | Connect Pipes | Usage: | Convey Water Gas Oil |
| High Light: | SS Elbow Schedule 80 Pipe Fittings,BSP Schedule 80 Pipe Fittings,25mm Schedule 80 Pipe Fittings |
||
Stainless steel elbow has a relatively simple composition, and its composition is relatively simple, which can make people easy to understand and imagine. The stainless steel elbow is a kind of polyurethane rigid foam stainless steel layer which is filled by the elbow of the conveying medium, the high density polyethylene sheath pipe, and the elbow and the outer tube. It is a kind of high density polyethylene external protective tube, polyurethane foam plastic prefabricated directly buried stainless steel elbow. It is only necessary to put the elbow of rust removal and anticorrosion in polyethylene bushing, and injecting polyurethane foam into the middle so as to fully fill the gap between elbow and polyethylene bushing, and make the elbow, casing and stainless steel layer form a firm whole in the later stage, so as to achieve the effect of anticorrosive stainless steel, and the stainless steel elbow is formed.
Schedule 80 pipe fittings Stainless steel elbow technical data sheet as below:
| Nominal Pipe Size | Center to End | Center to center | End to end | |||||
| H F | P | K | ||||||
| DN | NPS | LR | LR | SR | LR | SR | LR | SR |
| 15 | 1/2 | 16 | 38 | — | 76 | ― | 48 | — |
| 20 | 3/4 | 19 | 38 | — | 76 | ― | 51 | — |
| 25 | 1 | 22 | 38 | 25 | 76 | 51 | 56 | 41 |
| 32 | 1 1/4 | 25 | 48 | 32 | 95 | 64 | 70 | 52 |
| 40 | 1 1/2 | 29 | 57 | 38 | 114 | 76 | 83 | 62 |
| 50 | 2 | 35 | 76 | 51 | 152 | 102 | 106 | 81 |
| 65 | 2 1/2 | 44 | 96 | 64 | 190 | 127 | 132 | 100 |
Standard:DIN,BSP,ANSI,AWWA
Size:40mm,25mm,200mm
Usage:Convey Water Gas Oil
Stainless steel elbow is processed by pressure, which makes the processed stainless steel elbow produce plastic deformation. According to the elbow processing temperature, it can be divided into cold processing and hot processing. The main processing equipment of stainless steel elbow is semi continuous mill, including 1-stand Steckel mill and 5-stand finishing mill. In the semi continuous rolling mill, the hot rolling of the tube in the finishing pass is essentially constant from one end of the tube to the other. The time between passes on the finishing mill is usually less than 3 seconds.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
