Product Details:
|

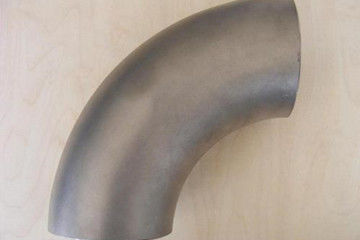

| Product Name: | Stainless Steel Elbow | Material: | Stainless Steel |
|---|---|---|---|
| Connection: | Welding | Head Code: | Round |
| Size: | 3/4'',40mm,1/8' ~ 6' | Color: | Silver |
| Application: | Connect Pipes,oil,gas And So On | StandardDIN, BSP, ANSI, AWWA: | DIN, BSP, ANSI, AWWA |
| High Light: | AWWA Schedule 80 Stainless Steel Elbow,40mm Stainless Steel Elbow,DN100 Industrial Steel Pipe Fittings |
||
Stainless steel elbow has the characteristics of reliable and safe connection, convenient and fast construction, good sanitation and environmental protection performance, small flow and pressure loss, strong system compatibility, open installation and concealed installation, no renewal and maintenance, superior economic performance and wide application range. It is suitable for cold and hot water, direct drinking water, heating, air conditioning, fire fighting, gas and other civil low-pressure fluid transportation, and can also be used for low-pressure fluid transportation in medicine, beverage, food, chemical industry and other industries. Stainless steel elbow can be used in different areas, outstanding features and advantages can promote the continuous implementation and progress, fully display the outstanding value and effect, without damaging the value in construction.
Elbow pipe fittings Stainless steel elbow technical data sheet as below:
| DN | Outside diameter | 90 degree elbow | ||
| A series | B series | Long radius | Short radius | |
| 15 | 213 | 18 | 38 | - |
| 20 | 26.9 | 25 | 38 | - |
| 25 | 33.7 | 32 | 38 | 25 |
| 32 | 42.4 | 38 | 48 | 32 |
| 40 | 483 | 45 | 57 | 38 |
| 50 | 603 | 57 | 76 | 51 |
| 65 | 76.1(73) | 76 | 95 | 64 |
| 80 | 88.9 | 89 | 114 | 76 |
| 100 | 1143 | 108 | 152 | 2 |
| 125 | 139.7 | 133 | 190 | 127 |
Material:Stainless Steel
Standard:DIN, BSP, ANSI, AWWA
Size:3/4'',40mm,1/8' ~ 6'
Stainless steel elbow is welded with the cylinder itself. It is necessary to pay attention to the cleaning of the surface, and then avoid the welding slag pollutants formed by welding and pickling of the surface. Avoid scratches on the surface of the elbow, which will lead to leakage of water and liquid. Avoid iron pollution and oxidation. Stainless steel elbows should not be placed in the open air to avoid rain and moisture. It cannot be combined and welded by force. Stainless steel elbow should be pickled after production. It must be noted that recovery acid can not be used for pickling to avoid material recovery.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
