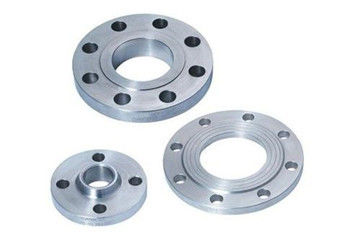

1/8" Flat Welding Connect Pipes Carbon Steel Flanges

1/8" Flat Welding Connect Pipes Carbon Steel Flanges
1/8" Flat Welding Connect Pipes Carbon Steel Flanges

Large Image :  1/8" Flat Welding Connect Pipes Carbon Steel Flanges

Product Details:
Place of Origin: China
Brand Name: Flat welding flange
Certification: ISO9001
Model Number: LJ-PF357
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

1/8" Flat Welding Connect Pipes Carbon Steel Flanges

Description
Product Name: Flat Welding Flange Standard: GB / ANSI /JIS / DIN
Size: 1/8"~2" Connection: Welding
Application: Connect Pipes Packing: Wooden Case
High Light:

ANSI Carbon Steel Flanges

,

DN20 Flat Welding Flange

,

OD 105mm Carbon Steel Flanges

Carbon steel pipe flanges Flat welding flange

Description


Flat welding flange is the initial stage of forging deformation, because the porous preform is easy to deform, the deformation force is small, and the density increases rapidly. In the later stage of forging, because most of the pores are closed, the deformation resistance increases, and the deformation force required to eliminate the residual pores increases rapidly. Deformation resistance is closely related to deformation temperature. Higher deformation temperature is beneficial to densification and reduces deformation resistance.

Flat welding flange is a forging process which requires more equipment than traditional die forging. The displacement characteristics of punch must match the deformation and compactness characteristics of preform. The contact time between blank and die should be as short as possible.

Technical data sheet


Carbon steel pipe flanges Flat welding flange technical data sheet as below:

Nominal diameter 16kg=l. 6MPa
outer diameter Bolt hole distance Bolt diameter Bolt hole number Flange thickness
DN10 90 60 14 4 14
DN15 95 65 14 4 14
DN20 105 75 14 4 16
DN25 115 85 14 4 16
DN32 140 100 18 4 18
DN40 150 110 18 4 18
DN50 165 125 18 4 20
DN65 185 145 18 4 20
DN80 200 160 18 8 20
DN100 220 180 18 8 22
DN125 250 210 18 8 22

Specification


Standard:GB / ANSI /JIS / DIN

Size:1/8"~2"

Connection:Welding

Characteristic


Flat welding flange not only saves space and weight, but also ensures that the joint will not leak and has good sealing performance. The reason why the compact flange size is reduced is that the diameter of the seal is reduced, which will reduce the cross section of the sealing surface. Therefore, flat welding flange is a kind of high quality flange products, which reduces the quality and space, and plays an important role in industrial use.

Package


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time


Our Steel flat factory have high ability for production, the delivery time is 30 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
