Product Details:
|
| Product Name: | 316 Stainless Steel Elbow | Standard: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Connection: | Welding | Size: | 1/8' ~ 6' |
| Application: | Oil,gas And So On | Packing: | Standard Packing |
| Highlight: | SS316 Slotted Steel Pipe Elbow,Corrosion Resistance SS316 Elbow,Gas SS316 Elbow |
||

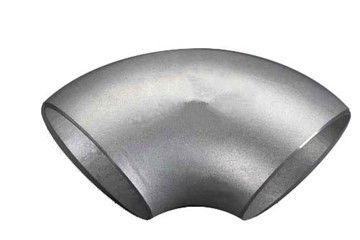

316 stainless steel elbow is a kind of slotted elbow with the end or part of the pipe being punched and stretched by a die forging machine to reduce the outer diameter. Stainless steel elbow in practical application can fully display certain characteristics and value, according to the normal process, export to different countries and regions.
Industrial Steel Pipe Fittings 316 stainless steel elbow technical data sheet as below:
| Nominal size | Outer diameter of groove | Center to End | ||
| DN | I series | II series | 90° elbow A | 45° elbow B |
| 15 | 21.3 | 18 | 38 | 16 |
| 20 | 26.9 | 25 | 38 | 19 |
| 25 | 33.7 | 32 | 38 | 22 |
| 32 | 42.4 | 38 | 48 | 25 |
| 40 | 48.3 | 45 | 57 | 29 |
| 50 | 60.3 | 57 | 76 | 35 |
| 65 | 73 | 76 | 95 | 44 |
| 80 | 88.9 | 89 | 114 | 51 |
| 90 | 101.6 | 133 | 57 | |
| 100 | 114.3 | 108 | 152 | 64 |
Standard:GB / ANSI /JIS / DIN
Size:1/8' ~ 6'
Application:oil,gas and so on
316 stainless steel elbow has good corrosion resistance, except for a small amount of hydrogenation agent, it can resist the corrosion of various chemical media, with excellent acid, alkali and corrosion resistance, no rust, no corrosion, no bacteria breeding and no electrochemical corrosion. The raw material is completely composed of carbon and hydrogen, and no toxic heavy metal salt stabilizer is added. The hygienic performance of the material has been tested by the authoritative department.
316 stainless steel elbow. Its density is 0.89-0.91g/cm, only one tenth of that of steel pipe. Because of its light weight, it can greatly reduce the transportation cost and the construction intensity of installation. Because of its unique impact strength, the ring stiffness is 1.3 times of that of the solid wall tube.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 35 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
