Product Details:
|
| Product Name: | Eccentric Reducer | Size: | 1/8' ~ 6' |
|---|---|---|---|
| Connection: | Welding | Standard: | GB / ANSI /JIS / DIN |
| Shape: | Reducing | Application: | Connect Pipes |
| High Light: | Steel Pipe Eccentric Reducer,Welding Eccentric Reducer,DIN Eccentric Reducer |
||
The materials of eccentric reducer include stainless steel, alloy steel, carbon steel, Q2, Q345, etc. The characteristic of the pipeline is that its strength is significantly higher than that of carbon steel with the same carbon content, and has better toughness, plasticity, weldability and corrosion resistance
The shrinkage forming process of eccentric reducer is to put the tube blank with the same diameter as the large end of the reducer into the forming die, and then the metal moves along the die cavity and shrinks to form by pressing along the axial direction of the tube blank.
Industrial Steel Pipe Fittings Eccentric reducer technical data sheet as below:
| NPS | Outside Diameter at Bevel | |
| Large End | Small End | |
| 3/4X1/2 | 26.7 | 21.3 |
| 3/4X3/8 | 26.7 | 17.3 |
| 1x3/4 | 33.4 | 26.7 |
| lxl/2 | 33.4 | 21.3 |
| 1.1/4x1 | 42.2 | 33.4 |
| 1.1/4X3/4 | 42.2 | 26.7 |
| 1.1/4X1/2 | 42.2 | 21.3 |
| 1.1/2x1.1/4 | 48.3 | 42.2 |
| 1.1/2x1 | 48.3 | 33.4 |
| 1.1/2X3/4 | 48.3 | 26.7 |
| 1.1/2x1/2 | 48.3 | 21.3 |
| 2x1.1/2 | 60.3 | 48.3 |
| 2x1.1/4 | 60.3 | 42.2 |
| 2x1 | 60.3 | 33.4 |
Standard:GB / ANSI /JIS / DIN
Size:1/8' ~ 6'
Application:Connect Pipes

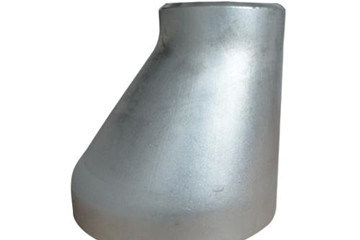

Eccentric reducer is used to connect pipes or flanges of different diameters with different diameters of pipe orifices at both ends. The circle center of the two ends of the reducer is not on the same axis, and the nozzles at both ends are circumferentially cut. It is generally used for horizontal liquid pipeline. When the tangent point of reducing pipe is upward, it becomes top flat installation. It is generally used for pump inlet, which is conducive to exhaust. The tangent point is downward to form the bottom flat installation, which is generally used for the installation of the regulating valve.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
