Product Details:
|
| Product Name: | Stainless Steel Tee | Standard: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Material: | Stainless Steel | Size: | 1/8' ~ 6' |
| Packing: | Wooden Case | Usage: | Joining Pipe Lines |
| High Light: | Sch80 Stainless Steel Tee,DN6 Stainless Steel Tee,NPS 1/8 Stainless Steel Tee |
||

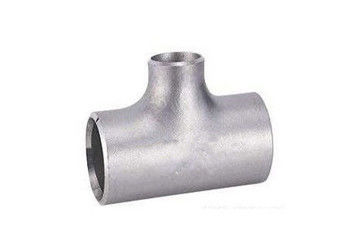

Stainless steel tee is a common connecting pipe for stainless steel pipe installation. It is used to connect three stainless steel pipes during pipe installation. According to the curve of water pipe, stainless steel tee is divided into Y-shaped tee, reducing tee and high-pressure tee, etc.
Stainless steel tee is the most common and reliable connection pipe of stainless steel pipe. The connection methods of stainless steel tee and pipe fittings mainly include welding, flange connection, screw connection, etc.
Standard:GB / ANSI /JIS / DIN
Size:1/8' ~ 6'
Usage:Joining Pipe Lines
1. the stainless steel tee has strong sealing performance and is not affected by the connecting pipe; the valve is fully open and closed, which will not cause corrosion of sealing surface.
2. the three-way components have simple structure, light weight and small volume, which can be directly maintained and cost-saving.
3. the sealing surface wear affects the sealing performance in the traditional pipe connection, and the tee can eliminate this, and the flow resistance of the tee is small.
4. it has a wide range of applications, and the specifications of the meridians from millimeter to meter are complete, and the high vacuum and strong pressure environment can be applied.
Industrial Steel Pipe Fittings Stainless steel tee technical data sheet as below:
| Nominal Diameter | Depth of Socket | Dimension of Socket | Wall Thickness | |||
| Cmin | ||||||
| DN | NPS | Jmin | d1 | 3000LB Sch80 | 6000LB Schl60 | 9000LB xxs |
| 6 | 1/8 | 10 | 10.7 | 32 | 3.5 | - |
| 8 | 1/4 | 10 | 14.1 | 33 | 4.0 | - |
| 10 | 3/8 | 10 | 17.5 | 3.5 | 4.4 | - |
| 15 | 1/2 | 10 | 21.8 | 4.1 | 5.2 | 8.2 |
| 20 | 3/4 | 13 | 27.4 | 43 | 6.1 | 8.6 |
| 25 | 1 | 13 | 34.2 | 5.0 | 7.0 | 10.0 |
| 32 | 1.1/4 | 13 | 42.9 | 53 | 7.0 | 10.6 |
| 40 | 1.1/2 | 13 | 48.3 | 5.6 | 7.8 | 11.2 |
| 50 | 2 | 13 | 61.1 | 6.1 | 9.5 | 12.2 |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 35 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
