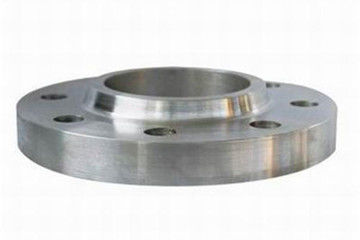

M16 Thread Stainless Steel DIN Socket Welding Flange

M16 Thread Stainless Steel DIN Socket Welding Flange
M16 Thread Stainless Steel DIN Socket Welding Flange

Large Image :  M16 Thread Stainless Steel DIN Socket Welding Flange

Product Details:
Place of Origin: China
Brand Name: Socket welding flange
Certification: ISO9001
Model Number: LJ-PF307
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

M16 Thread Stainless Steel DIN Socket Welding Flange

Product Name: Socket Welding Flange Standard: GB / ANSI /JIS / DIN
Material: Stainless Steel Connection: Welding
Size: Customized Size Application: Industry
High Light:

SS DIN Socket Welding Flange


M16 Thread Socket Welding Flange


RF Socket Welding Flange


Socket welding flange is a flange welded with steel pipe at one end and bolted at the other end. The production of socket welding flange is relatively simple, which is mainly applicable to the pipeline system with corrosive medium; the flange can be made of different materials to reduce the cost of flange and improve the performance.

The sealing surface of socket welding flange includes raised face (RF), concave convex surface (MFM), tenon and groove surface (TG) and ring joint surface (RJ). The connection mode mainly includes flange nut, bolt connection, etc. The production process includes professional integral forging, forging manufacturing, etc.

The main processing methods are high-precision CNC lathe turning, ordinary lathe finishing turning, argon arc welding and other processing. The application scope includes boiler pressure vessel, petroleum, chemical industry, shipbuilding, pharmaceutical, metallurgy, machinery, stamping elbow food and other industries.


Standard:GB / ANSI /JIS / DIN

Material:stainless steel

Size:Customized Size


Socket welding flange connection is to fix two pipes, pipe fittings or equipment on a flange plate respectively, then add flange gasket between the two flange plates, and tighten the two flange plates with bolts to make them tightly combined.

This kind of connection is mainly used for the connection of cast iron pipe, rubber lined pipe, non-ferrous metal pipe and flange valve. The connection between process equipment and flange also adopts flange connection.

Its main features are easy disassembly, high strength and good sealing performance. When installing the flange, the two flanges should be kept parallel, and the sealing surface of the flange should not be damaged and cleaned. Flange gasket shall be selected according to design regulations.

Technical data sheet

Stainless Steel Flange Fittings Socket welding flange technical data sheet as below:

Socket welding flange
DN Outer diameter of steel pipe Connection size Flange thickness Inside diameter of flange
Socket Flange neck height Theoretical weight
Flange outer diameter Diameter of bolt hole center circle Bolt hole diameter Number of bolt holes thread B2 U N R
10 17.2 14 100 70 14 4 M12 20 11.5 9 18 15 9 34 3 26 1.14
15 21.3 18 105 75 14 4 M12 20 16 12 22 19 10 38 3 26 1.26
20 26.9 25 130 90 18 4 M16 20 21 19 27.5 26 11 48 4 29 1.93
25 33.7 32 140 100 18 4 M16 24 26.5 26 34.5 33 13 52 4 32 2.43
32 42.4 38 155 110 22 4 M20 24 35 30 43.5 39 14 64 5 32 3.17
40 48.3 45 170 125 22 4 M20 26 41 37 49.5 46 16 74 5 34 3.88
50 60.3 57 180 135 22 4 M20 26 52 49 61.5 59 17 86 5 38 4.61


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
