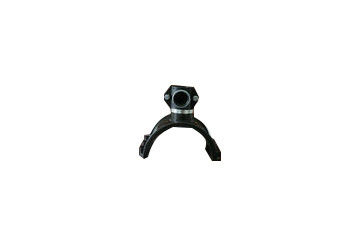

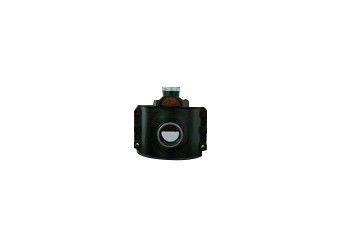

Saddle HDPE Pipe Fittings

Saddle HDPE Pipe Fittings
Saddle HDPE Pipe Fittings Saddle HDPE Pipe Fittings Saddle HDPE Pipe Fittings Saddle HDPE Pipe Fittings

Large Image :  Saddle HDPE Pipe Fittings

Product Details:
Place of Origin: China
Brand Name: HDPE hot-melt butt saddle type pipe fittings
Certification: ISO9001
Model Number: LJ-PF090
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Saddle HDPE Pipe Fittings

Description
Product Name:: HDPE Hot-melt Butt Saddle Type Pipe Fittings Size:: Full-size
Standard:: GB / ANSI /JIS / DIN Material:: PE100
Color:: Black Advantage:: Secure Connection
High Light:

butt HDPE Saddle

,

ANSI HDPE Saddle

,

plumbing HDPE Saddle

Description


PE butt saddle type pipe fittings lead out new branch pipe in the original pipeline, generally only the side port belongs to the rest of the pipeline and plays a fixed role.PE butt saddle pipe is a straight, three-way and four-way pipe with HDPE as raw material.It can replace flange tee, cross grafting branch pipe, with the advantages of simple installation, fast, accurate location and so on.

Generally, only the side port of butt saddle type pipe fittings belongs to the pipeline, and the rest part is used for fixing and matching with the drilling machine.Saddle type pipe fittings can save water cut-off time, reduce maintenance cost by ring ratio, and the mechanical properties of leakproof plug are far better than that of gray cast iron and less than that of steel.

Specification


Standard: GB / ANSI /JIS / DIN

Material: PE100

Color: black

Connection mode


The connection process of PE saddle type pipe fittings is basically the same as that of electric melting pipe fittings. The differences are as follows:The surface treatment and installation of the fixed first need to connect the main pipeline surface treatment cleaning.

Scrape off the oxide skin and install and fix it with bolts to make sure it is close to the connection surface.Install the special clamp to fasten and apply pressure. The special clamp for saddle connection shall be installed and fixed on the saddle pipe fitting.

The welding can only be carried out by applying a constant pressure on the connection surface.PE butt saddle drilling shall be straight formed and cooled to normal temperature after welding. Special tools shall be used for drilling after at least two hours.

Saddle HDPE Pipe Fittings 0

Advantage


In order to ensure the welding quality, it is not allowed to drill before connecting.Before drilling, the branch pipe must be connected to the required position or valve according to the drawing requirements.Before drilling, the connected branch network must be checked for pressure and air tightness test.

Ensure that the branch pipe network is well welded and the saddle type pipe fittings of electrofusion bypass are free of leakage.Reduce the pressure in the pipeline to less than 0.1MPa, ensure the safety of the construction environment, and start the drilling operation only after everything passes the inspection.

Technical data sheet


Saddle connection pe saddle butt saddle type pipe fittings technical data sheet as below:

Specifications Single weight with iron ring / g Packing list (PCs.)
20*1/2 68.1 400
25*1/2 78.3 320
25*3/4 76.4 320
32*1/2 88.7 300
32*3/4 88.7 300
32*1 95.2 240
40*1/2 168.6 180
40*3/4 166.7 180
40*1 173.6 180
50*1/2 185.9 140
50*3/4 183.9 140
50*1 200.7 140
50*11/4 203.3 120

Package


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time


Our Steel flat factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
