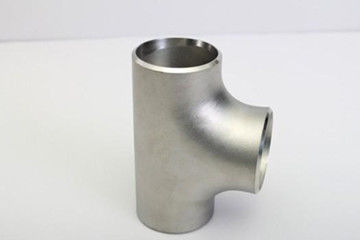

Connection Steel A234 Wp5 Wp9 Wp11 Alloy Pipe Fittings

Connection Steel A234 Wp5 Wp9 Wp11 Alloy Pipe Fittings
Connection Steel A234 Wp5 Wp9 Wp11 Alloy Pipe Fittings

Large Image :  Connection Steel A234 Wp5 Wp9 Wp11 Alloy Pipe Fittings

Product Details:
Place of Origin: China
Brand Name: Alloy pipe fittings
Certification: ISO9001
Model Number: LJ-PF065
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Connection Steel A234 Wp5 Wp9 Wp11 Alloy Pipe Fittings

Description
Product Name:: Alloy Pipe Fittings Size:: Full-size
Classification:: Joints, Elbows, Tees, Etc Technology:: Pushing, Pressing, Forging, Casting, Etc
Application: Connect Pipes,gas,Oil Packing: Wooden Case
High Light:

A234 Wp1 Alloy Pipe Fittings

,

A234 Wp11 Alloy Pipe Fittings

Description


Alloy elbow is a general term for a variety of elbows. It is used to connect the two pipes with the same nominal diameter to make the pipe turn at 90 ° or other angles. Alloy elbow materials are various and widely used.

The common bronze alloy elbow is common in the general water pipe, but with the improvement of living standard, many water pipes use stainless steel elbow.

The alloy elbow made of manganese steel is usually used in concrete pipeline, mud pipeline and other pipelines with serious wear consumption because of its excellent performance of bearing impact, extrusion and material wear.The high manganese steel alloy elbow is used in the pipeline with intense fluid flow and strong impact. The nickel steel alloy elbow is usually used in the normal temperature pipeline with high concentration of oxidizing acid (nitric acid, sulfuric acid).

Connection Steel A234 Wp5 Wp9 Wp11 Alloy Pipe Fittings 0

Manufacture processing


1.But it will be severely corroded in the pipeline with reducing acid (hydrochloric acid, dilute sulfuric acid, etc.), unless the concentration of hydrochloric acid is very low.

2, The martensitic alloy elbow has higher high temperature strength, oxidation resistance and water vapor corrosion resistance under 650 ℃,but its weldability is poor.

3. Therefore, it is often used in high temperature water vapor pipeline and water gas pipeline.

4.  The manufacturing process of alloy elbow can be divided into hot push forming and stamping forming.

5.  The hot push forming process of alloy elbow is a process in which the blank sheathed on the die moves forward under the push of the pusher, and is heated, expanded and bent during the process.

6. The characteristic of hot push forming is to determine the diameter of tube blank according to the law that the volume before and after the plastic deformation of metal materials is constant.

7. The diameter of tube blank is smaller than the diameter of elbow. The deformation process of billet is controlled by the core die.



Connection Steel A234 Wp5 Wp9 Wp11 Alloy Pipe Fittings 1

Characteristic


1.  The metal compressed at the inner arc flows and compensates to other parts thinned due to the expanding, so as to obtain the elbow with uniform wall thickness.

2.  Hot push forming has the characteristics of beautiful appearance, uniform wall thickness and continuous operation, which is suitable for mass production.

3.  Therefore, it has become the main forming method of carbon steel and alloy steel elbow, and it is also used in the forming of some specifications of stainless steel elbow.

4.  Stamping elbow is the first forming process used in the mass production of seamless elbow.

5.  It has been replaced by hot pushing or other forming processes in the production of common elbow specifications.



Connection Steel A234 Wp5 Wp9 Wp11 Alloy Pipe Fittings 2

Detail introduction


1.  However, it is still used in some elbow specifications due to the special requirements such as small production quantity, too thick or too thin wall thickness.

2.  The tube blank equal to the outer diameter of the elbow is used for the stamping of the elbow, and the press is used to directly press the elbow in the die.

3.  Compared with the hot push process, the appearance quality of the stamping process is not as good as the former; the outer arc of the stamping elbow is in the drawing state during the forming.

4.  And there is no extra metal in other parts to compensate, so the wall thickness at the outer arc is about 10% thinner.

5. However, due to the characteristics of single piece production and low cost, stamping elbow technology is mostly used in the manufacture of small batch and thick wall elbow.

Technical data sheet


Connection Steel A234 Wp5 Wp9 Wp11 Alloy Pipe Fittings data sheet

Basic dimensions of elbow, tee, cross and flange
Nominal diameter D
mm
Nominal pressure Basic dimensions
GCPQT01 90° elbow GCPQT02 45° elbow GCPQT03 tee GCPQT05 cross GCPQT08
flange
L L L L Do L
50 57 2.5 84 55 84 84 125 65 4-Φ18
50 60 84 55 84 84 125 65 4-Φ18
65 76 90 60 90 90 145 65 4-Φ18
80 89 94 65 94 94 160 65 8-Φ18
100 108 104 80 104 104 180 70 8-Φ18
100 114 104 80 104 104 180 70 8-Φ18
125 133 122 90 122 122 210 70 8-Φ18
125 140 122 90 122 122 210 70 8-Φ18
150 159 142 95 142 142 240 70 8-Φ22
150 165 142 95 142 142 240 70 8-Φ22
150 168 142 S5 142 142 240 70 8-Φ22
200 219 179 124 179 179 295 80 12-Φ22
250 273 215 144 215 215 355 85 12-Φ25
300 325 245 147 245 245 410 90 12-Φ25
350 377 1.6 356 147 305 305 470 100 16-Φ25
400 426 405 168 328 328 525 110 16-Φ30
450 480 457 190 359 359 585 115 20-Φ30
500 530 508 210 387 387 650 125 20-Φ34
600 630 610 253 441 441 770 135 20-Φ41

Specification


1. ASTM a234 Wp1 wp5 wp9 wp11 wp22 A420 wpl6 wpl3 a860 whpy42 / 52 / 60 / 65 / 70 / 80 / 100 by material.

2. It can be divided into pushing, pressing, forging, casting, etc.

3. Manufacturing standards can be divided into national standards, electricity standards, water standards, American standards, German standards, Japanese standards, Russian standards, etc.

4. According to its curvature radius, it can be divided into long radius elbow and short radius elbow. Long radius elbow refers to the outer diameter of the pipe whose radius of curvature is equal to 1.5 times, that is, r = 1.5D.

5. Short radius elbow means that its radius of curvature is equal to the outer diameter of the pipe, that is, r = 1.0D.



Connection Steel A234 Wp5 Wp9 Wp11 Alloy Pipe Fittings 3

Application


1,  There are many kinds of alloy elbows, which can be widely used in power powder conveying, ash conveying, desulfurization and flue, mine tailings conveying and washing system.

2,  It can be used in coal washing system, metallurgical blast furnace powder conveying, dust removal, slag flushing, flue and nitrogen ash removal system, ship dredging and sand pumping system.

3,  And also can be used in cement plant ash conveying, kiln mouth, silo and chute system, petroleum, chemical industry, metallurgy and ship Industries.

4,  Such as shipping, papermaking, electric power, pharmacy, water treatment, chemical fiber, urban construction and mechanical equipment.

Package


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized

Delivery time


Our Steel flat factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
