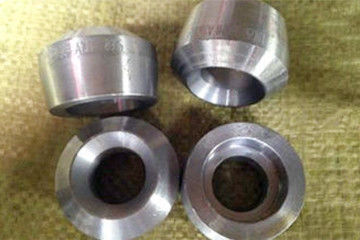

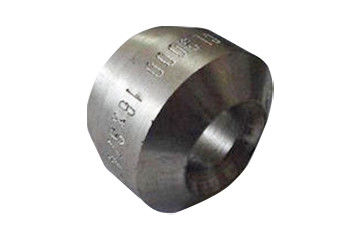

Product Details:
|
| Product Name:: | Carbon Steel Socket Welding Olet | Standard:: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Connection Mode：: | Socket Welding | Executive Standard：: | MSS SP-97、GB/T19326 |
| Application: | Gas,steam,Connect Pipes | Color: | Galvanized |
| High Light: | carbon steel weldolet,Weldolet Sockolet |
||
The main body of the Olet is made of high-quality forgings with the same material as the pipe, including carbon steel, alloy steel, stainless steel, etc. Olet seat and main pipe are welded, and there are three types of connection with Olet or other pipes (such as short pipe, plug, etc.), instrument and valve: butt welding connection, socket welding connection and threaded connection. Stainless steel Olet, the outer wall is T-shaped, the bottom of T-shaped is the connection end of main pipe, and the top of T-shaped is the connection end of Olet. The Olet support includes a shell and a lining, the lining is sleeved in the shell, the lining channel is cylindrical, the connecting end of the main pipe of the shell is provided with a hardfacing layer.
The Olet support passes through the side wall of the main pipe and is welded on the side wall of the main pipe. The technological analysis and the determination of technological scheme of Olet are based on the geometric shape and technological characteristics of Olet. The design of die structure, especially the design of die working parts, depends on the shape of socket pipe. The inner wall of the socket welding Olet is easy to be putrefaction, so it is necessary to conduct good inspection and treatment to ensure the good application characteristics and value of the socket pipe, and to apply and promote according to the accurate methods and methods.
The body of carbon steel Olet is made of high-quality forgings, and the material is the same as that of the pipeline. In recent years, it has been widely used in foreign countries for reinforcing pipe fittings used for Olet connection. Carbon steel Olet has many outstanding advantages, such as safety and reliability, cost reduction, simple construction, improvement of medium flow channel, series standardization, and convenient design and selection.
Standard: MSS sp-97, GB / t19326
Material: carbon steel
Size range: DN 6-100
Pressure range: 3000, 6000 LB
Surface treatment: anti-oil; anti-painting
| Nominal Diameter of Brane | Nominal Diameter of Suite H | L | E | ||||
| DN | NPS | mm | in | 3000LB | 6000LB | 3000LB | 6000LB |
| 6 | 1/8 | 20 | 3/4 | 19.1 | - | 15.9 | - |
| 8 | 1/4 | 20 | 3/4 | 19.1 | - | 15.9 | - |
| 10 | 3/8 | 25 | 1 | 20.6 | - | 19.1 | - |
| 15 | 1/2 | 32 | 1.1/4 | 25.4 | 31.8 | 23.8 | 19.1 |
| 20 | 3/4 | 40 | 1.1/2 | 27.0 | 36.5 | 30.2 | 25.4 |
| 25 | 1 | 50 | 2 | 33.3 | 39.7 | 36.5 | 333 |
| 32 | 1.1/4 | 65 | 2.1/2 | 33.3 | 41.3 | 44.5 | 38.1 |
| 40 | 1.1/2 | 65 | 2.1/2 | 34.9 | 42.9 | 50.8 | 492 |
| 50 | 2 | 80 | 3 | 38.1 | 52.4 | 65.1 | 69.9 |
| 60 | 2.1/2 | 100 | 4 | 39.7 | - | 76.2 | - |
| 80 | 3 | 125 | 5 | 44.5 | - | 93.7 | - |
| 100 | 4 | 150 | 6 | 47.6 | - | 120.7 |
- |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized
Our factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
