Butt Welding Equal Tee DIN Industrial Steel Pipe Fittings

Butt Welding Equal Tee DIN Industrial Steel Pipe Fittings
Butt Welding Equal Tee DIN Industrial Steel Pipe Fittings Butt Welding Equal Tee DIN Industrial Steel Pipe Fittings

Large Image :  Butt Welding Equal Tee DIN Industrial Steel Pipe Fittings

Product Details:
Place of Origin: China
Brand Name: Stainless steel butt welding equal tee
Certification: ISO9001
Model Number: LJ-PF007
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Butt Welding Equal Tee DIN Industrial Steel Pipe Fittings

Product Name:: Stainless Steel Butt Welding Equal Tee Standard:: GB / ANSI /JIS / DIN
Size:: Full-size Packing:: Wooden Case
Technology:: Hydraulic Bulging And Hot Pressing Head Code: Head Code
High Light:

DIN buttweld equal tee


buttweld pipe tee


buttweld ss equal tee


Tee also known as pipe tee or tee pipe fittings, tee joints, etc. Mainly used to change the direction of the fluid, used in the main pipe to branch. It can be classified by pipe diameter. Generally, it is made of carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, plastic, argon, PVC and other materials.

Tee is a kind of chemical pipe fitting with three orifices, i.e. one inlet and two outlets, or two inlets and one outlet, with T-shaped and Y-shaped, equal diameter pipe orifices and reducing pipe orifices, which are used for the confluence of three identical or different pipes.Stainless steel butt welding tee is a stainless steel elbow formed by hot pressing or forging. Its connection form is directly butt welding the tee and stainless steel pipe.

The main manufacturing standards of butt welding tee are generally GB / T12459, GB / T13401, ASME b16.9, SH3408, SH3409, HG / T21635, HG / T21631, SY / T0510.Equal diameter tee is a kind of stainless steel butt welding tee. There are general equal diameter tee and reducing tee.


Standard: GB / ANSI /JIS / DIN

Technology:Hydraulic bulging and hot pressing

Head code:Head code


It is named because the three ends can be connected with the pipe.At present, there are two kinds of technology commonly used in the manufacture of tee with seamless pipe, i.e. hydraulic bulging and hot pressing. The hydraulic bulging of stainless steel tee is a forming process of expanding branch pipe by axial compensation of metal material.

The process is to use a special hydraulic press to inject liquid into the tube blank with the same diameter as the tee, and extrude the tube blank through two horizontal side cylinders of the hydraulic press synchronously, the volume of the tube blank becomes smaller after extrusion, and the pressure of the liquid in the tube blank increases with the volume of the tube blank becoming smaller. When the pressure required by the expansion of the stainless steel tee branch pipe is reached, the liquid pressure of the metal material in the side cylinder and the tube blank is Under the double action of the force, the branch pipe flows along the inner cavity of the die and expands.

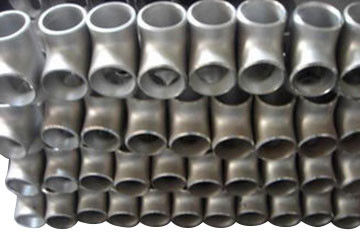

Butt Welding Equal Tee DIN Industrial Steel Pipe Fittings 0


Equal diameter tee is widely used in the construction and maintenance of petrochemical, oil and gas, liquefied gas, fertilizer, power plant, nuclear power, shipbuilding, papermaking, pharmaceutical, food hygiene, urban construction and other industries.

In industry, the pressure of this kind of pipe fittings is higher, the maximum pressure can reach 600 kg, and the pressure of water pipes in life is lower, generally 16 kg.

Technical data sheet

Butt Welding Equal Tee technical data sheet as below:

Specification Of Equal Tee
Nominal Diameter OuteideDiamster Center to End
D1 D2
DN NPS Series A Series B Series A Series B C M
15x15x15 1/2x1/2x1/2 21.3 18 21.3 18 25 25
15x15x10 1/2x1/2x3/8 21.3 18 17.3 14 25 25
15x15x8 1/2x1/2x1/4 21.3 18 13.7 10 25 25
20x20x20 3/4x3/4x3/4 26.9 25 26.9 25 29 29
20x20x15 3/4x3/4x1/2 26.9 25 21.3 18 29 29
20x20x10 3/4x3/4x3/8 26.9 25 17.3 14 29 23
25x25x25 1x1x1 33.7 32 33.7 32 38 38
25x25x20 1x1x3/4 33.7 32 26.9 25 38 38
25x25x15 1x1x1/2 33.7 32 21.3 18 38 38
32x22x32 1.1/4x1.1/4x1.1/4 42.4 38 42.4 38 48 48
32x32x25 11/4x1.1/4x1 42.4 38 33.7 32 48 48
32x32x20 1.1/4x1.1/4x3/4 42.4 38 25.9 25 48 48
32x32x15 1.1/4x1.1/4x1/2 42.4 38 21.3 18 48 48


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time

Our Steel flat factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
