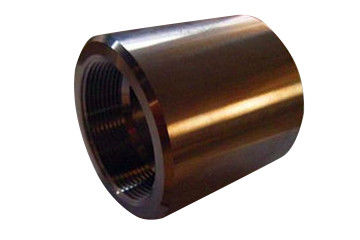

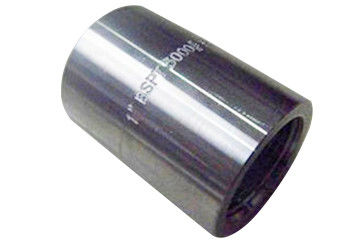

Buttweld Alloy Socket Weld Coupling

Buttweld Alloy Socket Weld Coupling
Buttweld Alloy Socket Weld Coupling Buttweld Alloy Socket Weld Coupling

Large Image :  Buttweld Alloy Socket Weld Coupling

Product Details:
Place of Origin: China
Brand Name: Alloy Coupling
Certification: ISO9001
Model Number: LJ-PF100
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Buttweld Alloy Socket Weld Coupling

Description
Product Name:: Alloy Coupling Size:: Full-size
Standard:: GB / ANSI /JIS / DIN Advantage:: High Pressure Resistance
Pressure Rating:: 3000lb Application:: Petrochemical Industry
High Light:

Alloy Socket Weld Coupling

,

Buttweld Full Coupling Socket Weld

Description


Alloy Coupling is one of the most powerful metal materials in construction because it will not produce corrosion or wear.Because alloy Coupling has good corrosion resistance, it can keep the integrity of engineering design of structural parts.Chromium alloy Coupling also integrates mechanical strength and high extensibility in the body, which is easy to process and manufacture parts, and can meet the needs of engineering.
Alloy Couplings also have good corrosion resistance in chemical media, and high temperature and high concentration media, including sulfuric acid, phosphoric acid, acid gas, sea water, salt and organic acid.It has good corrosion resistance in a small amount of gas filled industrial sulfuric acid, and in a small amount of gas filled industrial sulfuric acid with a concentration of 60% and a temperature of 80 ℃.

Buttweld Alloy Socket Weld Coupling 0

Nickel plating process


1,In the process of nickel plating for alloy Coupling, in order to ensure enough adhesion and coating quality, the substrate material must be identified.
2,The surface of some alloy Couplings containing catalytic toxic alloy materials should be adjusted before nickel plating to ensure that the chemical nickel plating can be carried out only after these alloy components are removed.
3,For example: lead (containing lead steel), sulfur (containing sulfur steel), excessive carbon (high carbon steel), carbide (carburizing steel), etc.
4,Because the residual of these substances will produce poor binding force and foaming problems.
5,Pinholes and porosity will occur on the surface and coating without removing these substances.
6,Another treatment is to use pre plating before nickel plating to isolate the influence of harmful alloy elements in the base material.

Buttweld Alloy Socket Weld Coupling 1

Alloy type


1,Duplex stainless steel: 2205 (F51 F60)                                 2,Austenitic stainless steel: 310S 904L (1.4539) 254SMO (f44)
3,Special stainless steel: 1.4418 431 C4 steel                         4,Inconel alloy: Inconel 600 601 625 690
5,Inconloy: lncoloy800 800H 800ht                                           6,Superalloy: suh660 (GH2132) gh4180
7,Monel alloy: MONEL400 monel500                                        8,Hastelloy C-276 C-22 B B-2 B-3

Buttweld Alloy Socket Weld Coupling 2


9,The commonly used brands of alloy materials are 15CrMo, 1Cr5Mo, 16Mn, 12Cr1MoV, F11, F22, 10CrMo910, etc
10,Other materials: copper alloy, nickel alloy, etc.
11,Socket elbow is mainly used in petrochemical industry, medicine and health, electric power, aerospace, military industry, fire protection, metallurgy, shipbuilding, gas and other fields.
12,It is also used in nuclear power, environmental protection and other departments and fields requiring high pressure and precise size.

Technical data sheet


Full Size Butt Weld Pipe Alloy Socket Weld Coupling data sheet

Size D L Z Wt (kg)
13 24 57 5 0.018
16 29 67 7 0.028
20 33 77 7 0.040
25 40 87 7 0.061
30 46 95 7 0.078
40 57 117 7 0.142
50 70 133 7 0.210
65 87 145 23 0.366
75 102 155 27 0.515
100 130 200 32 1.077
125 157 240 32 1.715
150 186 300 36 2.846
200 238 300 10 3.450
250 300 384 34 6.660
300 356 408 38 8.860

Package


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized

Delivery time


Our Full Size Butt Weld Pipe Alloy Socket Weld Coupling factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
