Product Details:
|
| Product Name:: | Alloy Cross | Size:: | Full-size |
|---|---|---|---|
| Standard:: | GB / ANSI /JIS / DIN | Specifications:: | DN6~DN100 |
| Material:: | AS | Technology：: | Sawing, Heat Treatment, Machining |
| High Light: | Metal Weldolet Fittings,Alloy Weldolet Sockolet |
||
In recent years, alloy branch pipe is widely used in foreign countries, and it is used as reinforcing pipe for branch pipe connection.It is used to replace the traditional branch connection types such as reducing tee, reinforcing plate and reinforced pipe section.The utility model has the advantages of safety, reliability, cost reduction, simple construction, improvement of medium flow passage, series standardization, convenient design and selection, etc.
1.Alloy branch pipe is widely used in high pressure, high temperature, large diameter and thick wall pipelines, replacing the traditional branch pipe connection method.
2.The branch header provides a branch from a large-diameter pipe to a small-diameter pipe.
3.The pipe welded on it is called the main pipe, and the pipe welded on the branch pipe is called the branch pipe.
4.Alloy branch pipe can be divided into size, type, hole diameter and pressure grade. The material can be chromium molybdenum alloy or other alloy materials.
1,The alloy branch pipe is forged by a new process. The product has the characteristics of fine grain, dense structure and uniform wall thickness.
2,Internal quality and reliability, accurate geometric dimension, natural and beautiful streamline, smooth inside and outside, easy for construction and installation.
3,More use socket, welding, forging, butt welding, forging, flat welding, push and other fine technology, more used in petrochemical, power enterprises.
4,The types of alloy branch pipes include: Incoloy series (800, 800H, 800ht, 825), Inconel series (600, 601, 625, X-750).
5,Monel series (400, K500), Hastelloy series (hc22, hc276, HB), alloy 20.
6,GH series (GH3030, GH3044, gh3128, etc.), NS series (ns315, ns333, etc.).
7,Ultra low austenitic stainless steel (such as 904L), bidirectional stainless steel series (2205, 2507), pure nickel series (Ni200, ni201), etc.
8,Nickel base alloys are widely used in many fields, such as petrochemical, pharmaceutical and papermaking, food industry, electric power ship, marine transportation, etc.

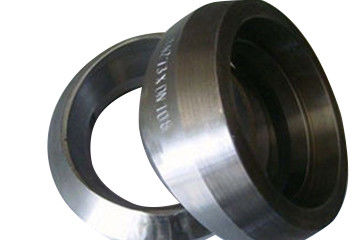

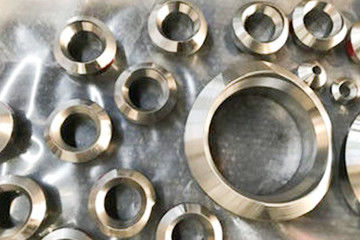

ISO9001 Certificate Metal Pipe Alloy Weldolet Sockolet data sheet
| Outlet Size | Run Size | A | E | ||||||
| mm | in | mm | in | STD | xs | xxs | STD | XS | XXS |
| 6 | 1/8 | 20 | 3/4 | 15.9 | - | - | 15.9 | - | - |
| 8 | 1/4 | 20 | 3/4 | 15.9 | - | - | 15.9 | - | - |
| 10 | 3/8 | 25 | 1 | 19.1 | - | - | 19.1 | - | - |
| 15 | 1/2 | 32 | 11/4 | 19.1 | 19.1 | 28.6 | 23.8 | 23.8 | 14.3 |
| 20 | 3/4 | 40 | 11/2 | 22.2 | 22.2 | 31.8 | 30.2 | 30.2 | 19.1 |
| 25 | 1 | 50 | 2 | 27.0 | 27.0 | 38.1 | 36.5 | 36.5 | 25.4 |
| 32 | 11/4 | 65 | 21/2 | 31.8 | 31.8 | 44.5 | 44.5 | 44.5 | 33.3 |
| 40 | 11/2 | 65 | 21/2 | 33.3 | 33.3 | 50.8 | 50.8 | 50.8 | 38.1 |
| 50 | 2 | 80 | 3 | 38.1 | 38.1 | 58.6 | 65.1 | 65.1 | 42.9 |
| 60 | 21/2 | 100 | 4 | 41.3 | 41.3 | 61.9 | 76.2 | 76.2 | 54.0 |
| 80 | 3 | 125 | 5 | 44.5 | 44.5 | 73.0 | 93.7 | 93.7 | 77.0 |
| 90 | 31/2 | 150 | 6 | 47.0 | 47.0 | - | 101.6 | 101.6 | - |
| 100 | 4 | 150 | 6 | 50.8 | 50.8 | 84.1 | 120.7 | 120.7 | 98.4 |
| 125 | 5 | 200 | 8 | 57.2 | 57.2 | 93.7 | 141.3 | 141.3 | 122.2 |
| 150 | 6 | 200 | 8 | 60.3 | 77.8 | 104.8 | 169.9 | 169.9 | 146.1 |
| 200 | 8 | 250 | 10 | 39.9 | 98.4 | - | 220.7 | 220.7 | - |
| 250 | 10 | 300 | 12 | 77.8 | 93.7 | - | 274.6 | 265.1 | - |
| 300 | 12 | 350 | 14 | 85.7 | 103.2 | - | 325.4 | 317.5 | - |
| 350 | 14 | 400 | 16 | 88.9 | 100.0 | - | 357.2 | 350.9 | - |
| 400 | 16 | 450 | 18 | 93.7 | 106.4 | - | 408.0 | 403.2 | - |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized
Our ISO9001 Certificate Metal Pipe Alloy Weldolet Sockolet factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
