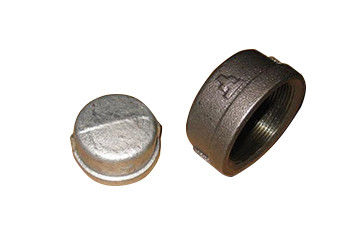

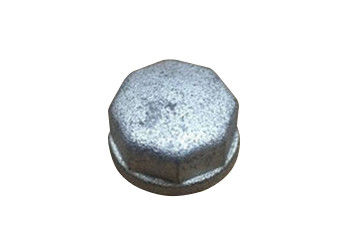

138GPa Cap Malleable Iron Pipe Fittings

138GPa Cap Malleable Iron Pipe Fittings
138GPa Cap Malleable Iron Pipe Fittings 138GPa Cap Malleable Iron Pipe Fittings

Large Image :  138GPa Cap Malleable Iron Pipe Fittings

Product Details:
Place of Origin: China
Brand Name: Malleable Iron pipe cap
Certification: ISO9001
Model Number: LJ-PF093
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

138GPa Cap Malleable Iron Pipe Fittings

Description
Product Name:: Malleable Iron Pipe Cap Size:: Full-size
Standard:: GB / ANSI /JIS / DIN Density:: 7.0—7.4g/cm³
Thermal Conductivity:: 1493 Modulus Of Elasticity:: 138—1650GPa
High Light:

138GPa Cast Iron Cap

,

cap mar steel Pipe Fittings

Description




Malleable Iron pipe cap can be melted by acid or alkaline cupola, or by electric arc furnace, coreless or cored induction furnace and reflection furnace.The main problems to be considered in the melting of Malleable Iron pipe cap are as follows:

Chemical composition of molten iron; Operation characteristics of different smelting equipment; Composition control of molten iron and adjustment or desulfurization of chemical composition.

At present, the production of Malleable Iron pipe cap at home and abroad mostly adopts the method of adding alloy containing a certain amount of modified elements into iron water for modification.The operation process is similar to spheroidizing treatment of nodular cast iron, and the upper and lower limits of modifying elements required by Malleable Iron pipe cap are very narrow.

Therefore, on the one hand, it is necessary to develop a suitable modified Malleable Iron alloy, so that it has a large amount of scope.On the other hand, measures are taken in the treatment process to make the process factors as stable as possible and the absorption rate of modified elements as high and uniform as possible.

138GPa Cap Malleable Iron Pipe Fittings 0

Specification


Standard: GB / ANSI /JIS / DIN

Density:7.0—7.4g/cm³

Modulus of elasticity:138—1650GPa

Manufacturing process


Normalizing treatment is one of the effective ways to obtain pearlite matrix.The reasonable selection of normalizing temperature is one of the key factors.The increase of normalizing temperature and holding time in a certain range can significantly increase the pearlite content in the matrix.

If the normalizing temperature is lower than 900 ℃, no matter how long the holding time is, it is difficult to get the matrix structure with pearlite content greater than 80%.Therefore, the proper normalizing temperature should be above 950 ℃.

138GPa Cap Malleable Iron Pipe Fittings 1

Application


The high temperature and overheating of molten iron is the first condition to improve the casting quality of steel pipe cap.The study on the metallurgical properties of molten iron shows that the cast iron remains heterogeneous for a long time after melting.

Overheating at high temperature can accelerate the process of carbon dissolution and molten iron homogenization. Hot metal can gain a series of benefits.Malleable Iron pipe cap has many uses, which can be used in fire fighting, water heating and gas pipe fittings and other fields.It can also be used in the field of Arts and crafts, spray color paint, baking paint, and make it into loft style.

Technical data sheet


138GPa Cast Steel Cap technical data sheet as below:

DN Outer diameter Length Limiting wall thickness Length b
I Series II Series E E E'
15 21.3 18 25 4.57 25
20 26.9 25 25 3.81 25
25 33.7 32 38 4.57 3S
32 42.4 38 38 4.83 38
40 48.3 45 38 5.08 38
50 60.3 57 38 5.59 44
65 73.0 76 38 7.11 51
80 88.9 89 51 7.62 64
90 101.6 - 64 8.13 76
100 114.3 108 64 8.64 76
125 141.3 133 76 9.65 89
150 168.3 159 89 10.92 102
200 219.1 219 102 12.7 127
250 273.0 273 127 12.7 152
300 323.9 325 152 12.7 178
350 355.6 377 165 12.7 191
400 406.4 426 178 12.7 203
450 457 480 203 12.7 229
500 505 530 229 12.7 254
550 559 - 254 12.7 254
600 610 630 267 12.7 305
650 660 - 267 - -
700 711 720 267 - -
750 762 - 267 - -
800 813 820 267 - -



Package


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time


Our Steel flat factory have high ability for production, the delivery time is 30 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
