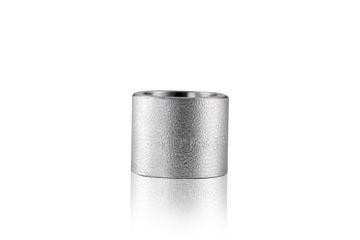

Stainless Steel ASME B16.11 Ss304 Pipe Coupling

Stainless Steel ASME B16.11 Ss304 Pipe Coupling
Stainless Steel ASME B16.11 Ss304 Pipe Coupling Stainless Steel ASME B16.11 Ss304 Pipe Coupling

Large Image :  Stainless Steel ASME B16.11 Ss304 Pipe Coupling

Product Details:
Place of Origin: China
Brand Name: Stainless steel socket welded coupling
Certification: ISO9001
Model Number: LJ-PF028
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

Stainless Steel ASME B16.11 Ss304 Pipe Coupling

Product Name:: Stainless Steel Socket Welded Coupling Size:: Full-size
Standard:: ASMEB16.11、GB/T14383-2008 Connection Method:: Socket Welding
Specifications:: DN6~DN100
High Light:

ss304 pipe coupling


ASME B16.11 pipe coupling


ASME B16.11 Stainless Steel Pipe Coupling


Coupling is a kind of fitting commonly used in industrial pipeline connection, also called direct head. Coupling is a short pipe used to connect two pipes. Because of its convenient use, it is widely used in civil construction, industry, agriculture and other fields.According to its manufacturing process, the Coupling can be divided into forging and casting.

Casting refers to melting the ingot and pouring it into a fixed Coupling model, then cooling it.The bell and spigot Coupling is a pipe connector machined after the forging of round steel or ingot. Its connection form is socket welding. The steel pipe is inserted into the socket for welding. The main manufacturing standards are ANSI / ASME B16.11 and GB / T 14383-2008.

The variety of collar includes double socket collar and single socket collar. Among them, double socket Coupling can be divided into equal diameter and different diameter.Double socket Coupling with different diameter can be divided into concentric and eccentric.

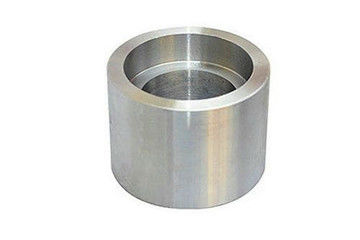

Stainless Steel ASME B16.11 Ss304 Pipe Coupling 0


Standard: ASMEB16.11,GB/T14383-2008

Connection method:Socket welding

Specifications: DN6~DN100


Long service life. Under the condition of rated temperature and pressure, the Coupling can be used safely for more than 50 years.Excellent corrosion resistance. The Coupling can resist the corrosion of most chemicals, and can withstand the corrosion of high concentration acid and alkali with pH value ranging from 1 to 14 in a large range.

High stiffness. Due to the addition of glass fiber reinforced materials, the Coupling is not easy to deform.Heat and insulation. The maximum operating temperature of the energy-saving Coupling is 95 ℃, and the thermal conductivity of the product is only 1 / 200 of that of the steel pipe, so it has better thermal insulation performance.


Stainless steel socket welding Couplings are made of 304, 304L, 316, 316L and other stainless steel materials.Stainless steel socket welding Couplings are corrosion-resistant, high temperature resistant, high pressure resistant, sanitary and non-toxic, recyclable and suitable for corrosive liquid transportation (such as acid and alkali liquid) and municipal water supply and drainage system.

The stainless steel socket welding Coupling has excellent anti impact strength and tensile strength, light weight and convenient installation and maintenance. Coupling is widely used in chemical industry, chemical fiber, dye, water supply and drainage, food, medicine, sewage treatment, electrolysis and other industries because of its unique performance.

Technical data sheet

Stainless Steel ASME B16.11 Ss304 Pipe Coupling technical data sheet as below:

DN Size Bore Diameter of Fittings "D" Socket Wall Thickness-C Laying Length
3000 6000 9000
3000 6000 9000 Ave. Miin. Ave. Miin. Ave. Miin. E F
6 1/8" 6.1~7.6 32-4.8   3.18 3.18 3.96 3.43     6.5 16
8 1/4" 8.5-10 5.6~7.1   3.78 3.3 4.6 4.01     6.5 16
10 3/8'' 11.8-13.3 8.4~9.9   4.01 3.5 5.03 4.37     6.5 17.5
15 1/2'' 15-16.6 11-12.5 5.6~7.2 4.67 4.09 5.97 5.18 9.35 8.18 9.5 22.5
20 3/4" 20.2-21.7 14.8~16.3 10.3-11.8 4.9 4.27 6.96 6.04 9.78 8.56 9.5 24
25 1'' 25.9~27.4 19.9~21.5 14.4~16 5.69 4.98 7.92 6.93 11.38 9.96 12.5 28.5
32 1.1/4" 34.3-35.8 28.7-30.2 22-23.5 6.07 5.28 7.92 6.93 12.14 10.62 12.5 30
40 1.1/2" 40.1-41.6 33.2~34.7 27.2-28.7 6.35 5.54 8.92 7.8 12.7 11.12 12.5 32
50 2'' 51.7-53.3 42.1'43.6 37.4~38.9 6.93 6.04 10.92 9.5 13.84 12.12 19 41
65 2.1/2'' 61.2-64.2     8.76 7.67         19 43
80 3'' 76.4~79.4     9.52 8.3         19 44.5
100 4" 100.7-103.8     10.69 9.35         19 48


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time

Our Steel flat factory have high ability for production, the delivery time is 20 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
