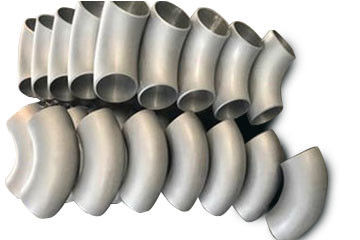

1.5 Stainless Steel 304L Long Radius Pipe Elbow

1.5 Stainless Steel 304L Long Radius Pipe Elbow
1.5 Stainless Steel 304L Long Radius Pipe Elbow 1.5 Stainless Steel 304L Long Radius Pipe Elbow

Large Image :  1.5 Stainless Steel 304L Long Radius Pipe Elbow

Product Details:
Place of Origin: China
Brand Name: Stainless steel butt welding elbow
Certification: ISO9001
Model Number: LJ-PF004
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: 1USD-100USD
Packaging Details: Export standard packaging
Delivery Time: Depends on the quantity of goods
Payment Terms: L/C, T/T
Supply Ability: Annual output 50000 tons

1.5 Stainless Steel 304L Long Radius Pipe Elbow

Product Name:: Stainless Steel Butt Welding Elbow Size:: Customized Size
Standard:: GB / ANSI /JIS / DIN Packing:: Wooden Case
Wall Thickness:: SCH5S-SCH160 Material:: 304L, 316L, Etc
High Light:

304L long radius pipe elbow


304l Stainless Steel Fittings


Ss304l Pipe Fittings


The stainless steel butt welding elbow is mainly used as a connecting pipe fitting in the pipeline installation, which is used for the connection at the pipe corner. Connect two pipes with the same or different nominal diameter to make the pipe turn. The main difference between stainless steel elbow and carbon steel elbow is the material difference. The common steel types are: 304, 304L, 316, 316L, etc.

The chemical composition of the elbow will keep the surface of the elbow from rusting and corrosion for a long time.Long radius elbow refers to the elbow whose radius of curvature is 1.5 times of the pipe diameter. Long radius elbows are widely used.

Generally, long radius elbows will be used in default situations and places with high pressure or high flow rate. If the resistance requirements of solid transportation pipeline are strict, larger radius elbows will be used.The radius of curvature of long radius elbow is 1.5 times of the pipe diameter, and the radius of curvature of short radius elbow is equal to the pipe diameter, i.e. 1 time.

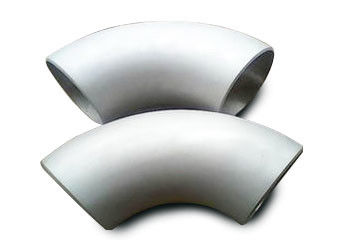

1.5 Stainless Steel 304L Long Radius Pipe Elbow 0


Standard: GB / ANSI /JIS / DIN

wall thickness:SCH5S-SCH160

Material:304L, 316L, etc


Short radius elbows are generally used in low-pressure fluids or where elbows are limited. Long radius elbows are preferred if there are no conditions or are not specified in the contract.In the use of pipeline, long radius is more common, while short radius is less, which is caused by their special structure.

Compared with short radius elbow, long radius elbow has more uniform curvature and higher compression resistance. Butt welding elbows are generally long radius elbows.

Short radius elbow is generally applicable to pipes with small pressure and resistance, while short radius elbow should not be used for pipes containing solid particles or particles prone to crystallization, two-phase flow pipes, pipes requiring certain flexibility, pipes requiring small pressure drop and pipes prone to vibration.


During installation, the long radius stainless steel elbow can be directly installed on the pipeline according to the connection mode, and installed according to the use position. Generally, it can be installed at any position of the pipeline, but it needs to be sealed to prevent leakage and affect the normal operation of the pipeline.

When the ball valve, stop valve and gate valve with stainless steel elbow are used, they are only used for full opening or full closing, and cannot be used for regulating the flow, so as to avoid damage to the elbow.The stainless steel elbows stored for a long time shall be inspected on schedule. The exposed processing surface shall be kept clean, and the dirt shall be removed.

The elbows shall be stored in a clean and dry place indoors. Stacking or outdoor storage is strictly prohibited. Always keep the stainless steel elbow dry and ventilated, keep the device clean and tidy, and store according to the accurate storage method.


Stainless steel long radius elbow is widely used in petroleum, chemical industry, nuclear power plant, food manufacturing, construction, shipbuilding, papermaking, medicine and other industries.

Pipes used in water, beverage, beer, food, petrochemical industry, nuclear power, machinery, medical equipment, chemical fertilizer, shipbuilding, waterproof treatment.

It can be used in a wide range, with a diameter of several millimeters and meters, from high vacuum to high pressure.

Technical data sheet

1.5 Stainless Steel 304L Long Radius Pipe Elbow technical data sheet as below:

Nominal size Outer diameter of groove Center to End
DN I series II series 90° elbow A 45° elbow B
15 21.3 18 38 16
20 26.9 25 38 19
25 33.7 32 38 22
32 42.4 38 48 25
40 48.3 45 57 29
50 60.3 57 76 35
65 73 76 95 44
80 88.9 89 114 51
90 101.6 - 133 57
100 114.3 108 152 64
125 141.3 133 190 79
150 168.3 159 229 95
200 219.1 219 305 127
250 273 273 381 159
300 323.9 325 457 190
350 355.6 377 533 222
400 406.4 426 610 254
450 457 480 386 286
500 508 530 762 318
550 559 - 838 343
600 610 630 914 381
650 660 - 991 406
700 711 720 1067 438
750 762 - 1143 470
800 813 820 1219 502


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time

Our Steel flat factory have high ability for production, the delivery time is 20 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
