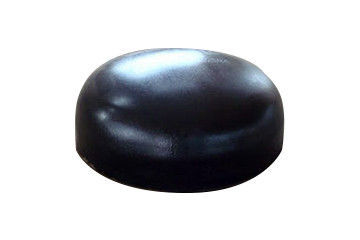

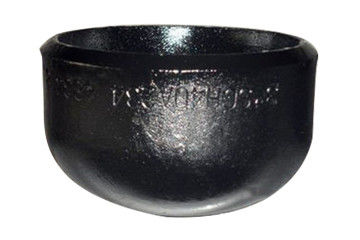

JIS Cap Cast Iron Water Main Fittings

Description

Pipe cap is also known as head and plug. It is a pipe fitting welded on the pipe end or installed on the external thread of the pipe end to cap the pipe. It is used to close the pipeline and has the same function as the pipe plug.Ductile iron is a kind of cast iron, an alloy of iron, carbon and silicon. Graphite in ductile cast iron exists in the form of spheroid.

The size of graphite is generally 6-7 grade, and the quality of the pipe is required to be 1-3 grade. Therefore, the mechanical properties of the material itself have been improved. It has the nature of iron and the properties of steel. The microstructure of the annealed ductile cast pipe cap is ferrite and a little pearlite.Ductile cast iron pipe cap is mainly called centrifugal ductile cast iron pipe cap.

It has the properties of iron and steel, excellent corrosion resistance, good ductility, good sealing effect, simple installation, mainly used for municipal, industrial and mining enterprises water supply, etc.

Specification

Standard: GB / ANSI /JIS / DIN

Material:Ductile iron

Technics: Stamping and Welding

Type

Ductile cast iron pipe cap is a pipe fitting with the advantages of high strength, high elongation, impact resistance, corrosion resistance and good sealing performance. The inner wall is lined with epoxy resin powder or cement mortar, which improves the water delivery environment of the pipeline, improves the water supply capacity and reduces energy consumption.

The pipe orifice adopts a flexible interface, and the pipe fitting itself has a large elongation, which makes the pipeline flexible. The pipe is buried in the pipeline It can work together with the soil around the pipeline to improve the stress state of the pipeline, so as to improve the reliability of the pipeline network operation.Ductile iron pipe cap is a pipe fitting welded on the pipe end or installed on the external thread of the pipe end to cover the pipe.

characteristic

It is used to close the pipeline and has the same function as the pipe plug. Hygienic and non-toxic. The product belongs to green building materials, which can be used for water transmission pipeline system. Pickling and passivation treatment can be carried out on the surface of nodular cast iron pipe cap and pipe fitting to increase the thickness of chromium rich oxide layer and improve the corrosion resistance of products.

Ductile cast iron pipe cap can be used in wet fire protection system instead of traditional metal pipe cap, which has been widely used in advanced areas in Europe and America. The material is made of ductile cast iron. The two-piece ball valve can be produced according to customers' drawings, samples and requirements.

Advanced production and management equipment and technology are used in the process of processing and manufacturing. Light weight, using approved special adhesive joint, very fast and simple handling and construction, saving at least 50% of installation time.

Technical data sheet

JIS Pipe Cap Cast Iron Water Main Fittings technical data sheet as below:

Package

a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time

Our Steel flat factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
