Product Details:
|
| Product Name:: | Socket Welding Flange | Standard:: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Production Process：: | Integral Forging | Sealing Surface Form：: | RF, MFM, TG, RJ |
| Application: | Industrial,Petroleum | Packing: | Color Box Or Customized |
| High Light: | socket weld flange welding,cs Carbon Steel Flanged Fittings |
||

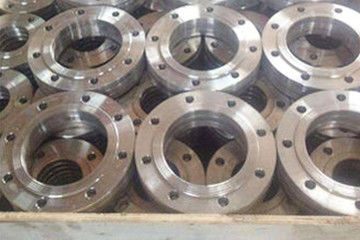

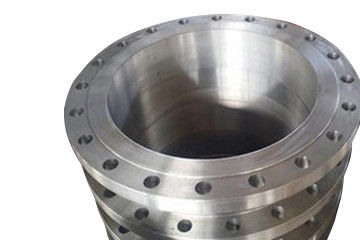

Socket welding flange refers to the flange welded at the pipe end and outside when the pipe end is inserted into the flange ring ladder. There are two kinds with and without neck. The flange with neck has good rigidity, small welding deformation and good sealing performance.
It can be used in the situation with pressure of 1.0 ~ 10.0MPa. B flange for vessel is also socket welding flange, which is used in the occasion with high sealing requirements. During design, socket welding flange can be checked as integral flange.
Socket welding is to extend the pipe into the valve body for welding. After forming, it is similar to the internal thread connection. Generally speaking, there are more carbon steel pipes and stainless steel pipes below 2 "with socket welding. Butt welding is also used for stainless steel pipes below 2", such as flange flanging of sliding sleeve; butt welding is basically used for titanium pipes, dual phase steel, nickel base alloy, etc.
1. Socket welding forms fillet weld, while butt welding forms butt weld.
2. The butt joint is better than the socket joint according to the strength and stress condition of the weld joint, so the butt joint should be used in the situation of high pressure level and bad service condition.
3. Socket welding is generally used for small pipe diameter less than or equal to Dn40, which is more economical.
4. Butt welding is generally used for Dn40 and above. The connection form of socket welding is mainly used for the welding of small-diameter 5. Generally, the wall thickness of small diameter pipe is thin, easy to stagger and ablate, and the butt welding is difficult, so it is more suitable for socket welding.
6. In addition, socket welding has the function of reinforcement, so it is often used under high pressure.
1. The basic shape of the socket flange is the same as that of the flange with neck flat welding.
2. There is a section of socket on the inner hole of the flange, the pipe is inserted into the socket and welded, and a circle of weld is welded on the back of the flange.
3. Because there is a gap between the socket flange and tube edge, it is easy to produce corrosion.
4. If another weld is welded inside, this corrosion can be avoided.
5. The fatigue strength of the socket flange welded on both sides is 5% higher than that of the flat flange, and the static strength is the same.
6. When this kind of socket flange is used, its inner diameter shall be the same as that of the pipe. Socket flange is only applicable to pipes with nominal diameter less than 150.
1, Sealing surface type: RF, MFM, TG, RJ
2, Material: carbon steel: ASTM A105, 20 × Q235, 16Mn, ASTM A350 LF1, LF2 CL1 / Cl2, LF3 CL1 / Cl2, ASTM a694 F42, F46, F48, F50, f52, f56, F60, F65, F70;
3, Stainless steel: ASTM A182 f304, 304L, F316, 316L, 1Cr18Ni9Ti, 0Cr18Ni9Ti, 321, 18-8;
4, Alloy steel: ASTM A182 F1, f5a, F9, F11, F12, F22, F91, a182f12, a182f11, 16MnR, Cr5Mo, 12Cr1MoV, 15CrMo, 12cr2mo1, A335P22, st45.8/Ⅲ;
5, Manufacturing standard: ANSI B16.5,HG20619-1997,GB/T9117.1-2000—GB/T9117.4-200,HG20597-1997.
6, Connection mode: flange nut, bolt connection.
7, Production process: professional overall forging, forging manufacturing, etc.
8, Processing mode: high precision CNC lathe turning, general lathe finishing, argon arc welding and other processing.
9, Application scope: Boiler and pressure vessel, petroleum, chemical industry, shipbuilding, pharmaceutical industry, metallurgy, machinery, stamping elbow food industry, etc.
1, There is no problem of beveling; there is no problem of butt joint and wrong edge; the welding position can be adjusted to flat welding.
2, One is that the stress condition after welding is not good, and it is easy to have incomplete welding, and there is a gap in the pipe system.
3, Socket welding is not suitable for the pipe system used for the crack corrosion sensitive medium and the pipe system with high cleaning requirements.
4, Moreover, the wall thickness of the ultra-high pressure pipeline, even the small diameter pipeline, is also very large, and the butt welding can be used to avoid socket welding as much as possible.
| Socket welding flange | |||||||||||||||||
| DN | Outer diameter of steel pipe | Connection size | Flange thickness | Inside diameter of flange B1 |
Socket | Flange neck | height | Theoretical weight | |||||||||
| Flange outer diameter | Diameter of bolt hole center circle | Bolt hole diameter | Number of bolt holes | thread | B2 | U | N | R | |||||||||
| A | B | A | B | A | B | ||||||||||||
| 10 | 17.2 | 14 | 100 | 70 | 14 | 4 | M12 | 20 | 11.5 | 9 | 18 | 15 | 9 | 34 | 3 | 26 | 1.14 |
| 15 | 21.3 | 18 | 105 | 75 | 14 | 4 | M12 | 20 | 16 | 12 | 22 | 19 | 10 | 38 | 3 | 26 | 1.26 |
| 20 | 26.9 | 25 | 130 | 90 | 18 | 4 | M16 | 20 | 21 | 19 | 27.5 | 26 | 11 | 48 | 4 | 29 | 1.93 |
| 25 | 33.7 | 32 | 140 | 100 | 18 | 4 | M16 | 24 | 26.5 | 26 | 34.5 | 33 | 13 | 52 | 4 | 32 | 2.43 |
| 32 | 42.4 | 38 | 155 | 110 | 22 | 4 | M20 | 24 | 35 | 30 | 43.5 | 39 | 14 | 64 | 5 | 32 | 3.17 |
| 40 | 48.3 | 45 | 170 | 125 | 22 | 4 | M20 | 26 | 41 | 37 | 49.5 | 46 | 16 | 74 | 5 | 34 | 3.88 |
| 50 | 60.3 | 57 | 180 | 135 | 22 | 4 | M20 | 26 | 52 | 49 | 61.5 | 59 | 17 | 86 | 5 | 38 | 4.61 |
Boiler and pressure vessel, petroleum, chemical industry, shipbuilding, pharmacy, metallurgy, machinery, stamping elbow food and other industries.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized
Our Steel flat factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
