Product Details:
|
| Material: | Carbon Steel | Size: | 1/2''-72',1/2"-4 8" |
|---|---|---|---|
| Application: | Connect Pipes,oil | Standard: | DIN,ANSI,ASME,GB |
| Thickness: | STD,SCH80 | Packing: | Wooden Case Or Pallet |
| High Light: | DN10 Carbon Steel Flanges,DN250 Carbon Steel Flanges,1/2" Carbon Steel Flanges |
||

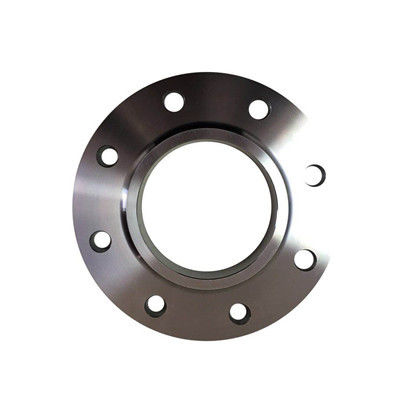

Carbon steel high pressure flange is a flange whose body is made of carbon steel. Common materials are carbon steel A105, or Q235B, A3, 10#, 20#, Q345B, etc. The surface of carbon steel flange is electroplated or coated with antirust oil and sprayed with antirust paint to prevent rust.
Carbon steel high pressure flange is different from ordinary flange in thickness, bolts used are also different, and there are obvious differences in materials. The forging strength of high-pressure flange is much better than that of ordinary flange.
Diameter: dn15-dn600
Nominal pressure: pn10-pn16
Product material: 20#, 16Mn, 304,316
Size:DN15 (1/2") to DN5000 (200")
DN10~DN250 1/2" ~ 8" Carbon steel high pressure flange technical data sheet as below:
| inch | Nominal diameter | 16kg=l. 6MPa | ||||
| outer diameter | Bolt hole distance | Bolt diameter | Bolt hole number | Flange thickness | ||
| 3/8 | DN10 | 90 | 60 | 14 | 4 | 14 |
| 1/2 | DN15 | 95 | 65 | 14 | 4 | 14 |
| 3/4 | DN20 | 105 | 75 | 14 | 4 | 16 |
| 1 | DN25 | 115 | 85 | 14 | 4 | 16 |
| 1¼ | DN32 | 140 | 100 | 18 | 4 | 18 |
| 1½ | DN40 | 150 | 110 | 18 | 4 | 18 |
| 2 | DN50 | 165 | 125 | 18 | 4 | 20 |
| 2½ | DN65 | 185 | 145 | 18 | 4 | 20 |
| 3 | DN80 | 200 | 160 | 18 | 8 | 20 |
| 3½ | DN100 | 220 | 180 | 18 | 8 | 22 |
| 4 | DN125 | 250 | 210 | 18 | 8 | 22 |
| 5 | DN150 | 285 | 240 | 22 | 8 | 24 |
| 6 | DN200 | 340 | 295 | 22 | 8 | 26 |
| 8 | DN250 | 405 | 355 | 26 | 12 | 29 |
Carbon steel high pressure flange is mainly used in petroleum, chemical industry, smelting, electric power, water conservancy, water supply, heating, gas supply, natural gas, ships, large-scale infrastructure, offshore platform and other fields.
