Product Details:
|
| Material: | Stainless Steel | Connection: | Welding |
|---|---|---|---|
| Size: | 1/2"-48",1/2''-72' | Standard: | ANSI,ASME,JIS,DIN |
| Application: | Gas And Oil Pipes | Packing: | In Wooden Cases Or Pallets |
| Highlight: | 316L Stainless Steel Buttweld Caps,ASME B16.9 Stainless Steel Buttweld Caps,Welding Stainless Steel Buttweld Caps |
||

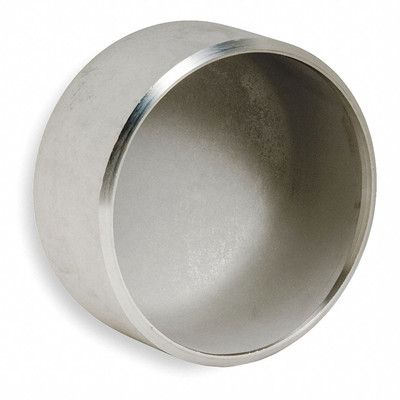

Stainless steel butt welded pipe cap is the end cover on the pressure vessel and a main pressure bearing component of the pressure vessel. The function is sealing. First, the upper and lower bottoms of the tank shaped pressure vessel are made; second, the pipe ends and is not ready to extend forward, so a pipe cap is used to seal the pipe.
Diameter: dn15-dn1200
Wall thickness: sch5-sch160
Packing: wooden case, carton
Stainless steel: 304 304L 316 316L
ASME B16.9 ANSI 304/304L/316/316LStainless steel butt welded pipe cap technical data sheet as below:
| DN | outside diameter | overall length | ||
| A | B | E | E1 | |
| 15 | 21.3 | 18 | 25 | - |
| 20 | 26.9 | 25 | 25 | - |
| 25 | 33.7 | 32 | 38 | - |
| 32 | 42.4 | 38 | 38 | - |
| 40 | 48.3 | 45 | 38 | - |
| 50 | 60.3 | 57 | 38 | 44 |
| 65 | 76.1(73) | 76 | 38 | 51 |
| 80 | 88.9 | 89 | 51 | 64 |
| 90 | 101.6 | - | 64 | 76 |
| 100 | 114.3 | 108 | 64 | 76 |
| 125 | 139.7 | 133 | 76 | 89 |
| 150 | 168.3 | 159 | 89 | 102 |
Stainless steel butt welded pipe cap has similar substitutes. Products with similar functions include blind plate and head, but the blind plate is as removable as the pipe cap, and the head is not removable. The supporting pipe fittings include pressure vessel, pipeline, flange, elbow, tee, cross and other products.
Stainless steel butt welded pipe cap is mainly used in water, petrochemical industry, nuclear power, machinery, medical equipment, chemical fertilizer, shipbuilding, waterproof treatment, pipeline and other fields.
