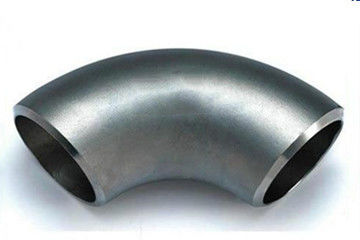

Product Details:
|
| Product Name: | Stamping Elbow | Material: | Stainless Steel |
|---|---|---|---|
| Shape: | Equal/Reducer | Type: | Elbow |
| Standard: | DIN, ANSI, ASTM, JIS, GB | Size: | Customized Size |
| Application: | Chemical, Construction | Packing: | Wooden Case, Bags |
| High Light: | DN65 Stainless Steel Elbow Fitting,DN65 Stainless Steel Elbow Fitting,ISO9001 SS Elbow Fitting |
||
Stamping elbow is the production efficiency of processing is high, and easy to operate, easy to complete mechanization and automation, this is because stamping is to rely on stamping die and stamping equipment to complete the processing, the general press travel times is 90 ° per minute, butt welding stamping elbow can reach dozens of times, high-speed pressure can reach hundreds or even thousands of times per minute, and each stamping travel can get one Stamping parts.
Stamping elbow has no chip generation, less data consumption and no other heating equipment, so it is a kind of material saving and energy-saving processing method, and the cost of stamping parts is lower. When stamping, because the die ensures the dimension and shape accuracy of the stamping parts, and generally does not damage the surface quality of the stamping parts, and the life of the die is generally long, so the stamping quality is stable and the interchangeability is good.
Stainless steel elbow fitting Stamping elbow technical data sheet as below:
| DN | Outside diameter | Center to end dimensions | |
| A Series | B Series | Long radius | |
| 15 | 21.3 | 18 | 16 |
| 20 | 26.9 | 25 | 16 |
| 25 | 33.7 | 32 | 16 |
| 32 | 42.4 | 3S | 20 |
| 40 | 48.3 | 45 | 24 |
| 50 | 60.3 | 57 | 32 |
| 65 | 76.1(73) | 76 | 40 |
| 80 | 88.9 | 89 | 47 |
| 100 | 114.3 | 108 | 63 |
| 125 | 139.7 | 133 | 79 |
Standard:DIN, ANSI, ASTM, JIS, GB
Application:Chemical, Construction
Packing:wooden case, Bags
Stamping elbow, Its molding needs to be carried out according to a certain process, strictly abide by the corresponding process, otherwise the stamping elbow produced will have quality problems. According to the requirements, a circular ring shell can be cut into four 90 ° elbows or six 60 ° elbows or other standard elbows.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
