Product Details:
|
| Material: | Stainless Steel | Connection: | Welding |
|---|---|---|---|
| Size: | 1/8' ~ 6' | Application: | Oil,gas And So On |
| Standard: | DIN,ANSI,GB/T | Packing: | Standard Packing |
| Highlight: | Duplex Elbow Joint Pipe,A815 Stainless Steel Elbow,1/8' Stainless Steel Weld Elbows |
||

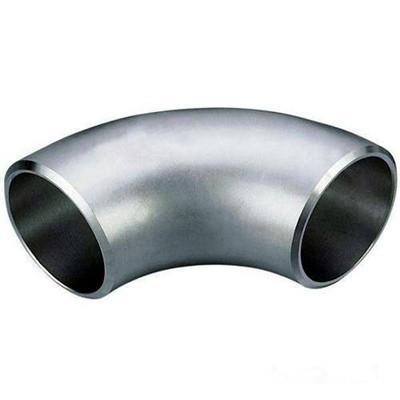

Stainless steel elbow is different from the main material of carbon steel elbow. Its chemical composition will keep the elbow surface from rusting and corrosion for a long time.
Stainless steel elbow does not need pipe blank as raw material, which can save the cost of pipe making equipment and mold, and can obtain elbow with arbitrary large diameter and relatively thin wall thickness.
Standards: ANSI B16.5; ANSI/ASME B16.9
Material: A403 WP304/304L; WP316/316L
Pressure: 150LB-2500LB; PN6-PN300
Wall thickness: STD,SCH40,XS,SCH80,XXS
ASME B16.9 ASTM A815 Duplex 2507 Stainless steel elbow technical data sheet as below:
| DN | Outside diameter | 90 degree elbow | ||
| A series | B series | Long radius | Short radius | |
| 15 | 213 | 18 | 38 | - |
| 20 | 26.9 | 25 | 38 | - |
| 25 | 33.7 | 32 | 38 | 25 |
| 32 | 42.4 | 38 | 48 | 32 |
| 40 | 483 | 45 | 57 | 38 |
| 50 | 603 | 57 | 76 | 51 |
| 65 | 76.1(73) | 76 | 95 | 64 |
| 80 | 88.9 | 89 | 114 | 76 |
| 100 | 1143 | 108 | 152 | 2 |
| 125 | 139.7 | 133 | 190 | 127 |
| 150 | 1683 | 159 | 229 | 152 |
| 200 | 219.1 | 219 | 305 | 203 |
| 250 | 273 | 273 | 381 | 254 |
1. Inner wall finish: the finish of the inner wall of stainless steel elbow fittings avoids the condensation of impurities. It is the most ideal material in construction.
2. High tensile strength: the tensile strength greater than 530n / ㎡ is 2-10 times higher than that of ordinary water pipe materials.
3. Good temperature resistance: some pipes begin to precipitate harmful substances at 40 ℃ and produce peculiar smell; The inner wall of some pipes corrodes rapidly under temperature, which shortens the service life of pipe fittings. Stainless steel can work safely for a long time at - 270 ~ 400 ℃ and has stable performance.
Stainless steel elbow is widely used in chemical industry, construction, water supply, drainage, petroleum, light and light industry, refrigeration, sanitation, plumbing, fire protection, electric power, aerospace, shipbuilding and other basic projects.
