Product Details:
|
| Product Name: | Stainless Steel Reducer | Standard: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Material: | SS304 SS316L | Connection: | Welding |
| Size: | Seamless 1/2" To 24" | Application: | Construction,Connect Pipes |
| High Light: | SS316L Stainless Steel Reducer,Dairy Stainless Steel Reducer,DN150 Stainless Steel Reducer |
||

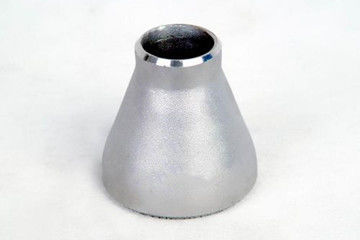

Stainless steel reducer. According to the connection mode, it can be divided into clamp type, welding type and threaded type. According to whether the diameter is equal or not, it can be divided into concentric reducer and eccentric reducer. The manufacturing process of reducing tube is to put the tube blank with the same diameter as the big end of reducing tube into the forming die. By pressing along the axial direction of tube blank, the metal moves along the die cavity and shrinks to form. According to the size of reducer, it can be divided into one-time pressing forming or multiple pressing forming.
Stainless Steel Pipe Fittings Stainless steel reducer technical data sheet as below:
| NPS | Outside Diameter at Bevel | End-to- End, H | |
| Large End | Small End | ||
| 3/4X1/2 | 26.7 | 21.3 | 38 |
| 3/4X3/8 | 26.7 | 17.3 | 38 |
| 1x3/4 | 33.4 | 26.7 | 51 |
| lxl/2 | 33.4 | 21.3 | |
| 1.1/4x1 | 42.2 | 33.4 | 51 |
| 1.1/4X3/4 | 42.2 | 26.7 | |
| 1.1/4X1/2 | 42.2 | 21.3 | |
| 1.1/2x1.1/4 | 48.3 | 42.2 | 64 |
| 1.1/2x1 | 48.3 | 33.4 | |
| 1.1/2X3/4 | 48.3 | 26.7 | |
| 1.1/2x1/2 | 48.3 | 21.3 | |
| 2x1.1/2 | 60.3 | 48.3 | 76 |
| 2x1.1/4 | 60.3 | 42.2 | |
| 2x1 | 60.3 | 33.4 | |
| 2x3/4 | 60.3 | 26.7 | |
Standard:GB / ANSI /JIS / DIN
Material:SS304 SS316L
Size:Seamless 1/2" To 24"
Stainless steel reducer is one of the chemical pipe fittings, which is used to connect two different pipe diameters. The surface can be painted for rust prevention, cold galvanizing and hot galvanizing. In the process, attention should be paid to the control caliber: DIN standard (DN 10-dn 150), 3A / IDF standard (1 / 2 "- 6), ISO standard (Ф 12.7 - Ф 152.4), international industrial standard: DIN, ISO, SMS, 3a, IDF, etc.
Stainless steel reducer is mainly made of 304316l stainless steel. This product is suitable for dairy, food, beer, beverage, pharmaceutical, cosmetics and other industrial fields.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
