Product Details:
|
| Product Name:: | Carbon Steel Threaded Olet | Standard:: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Advantage:: | Safety, Reliability And Cost Reduction | Application: | High Temperature, High Pressure |
| Packing: | Wooden Case Or Pallet | Color: | Galvanized |
| High Light: | Galvanized Threaded Olet,Cs Carbon Steel Tube Fittings |
||

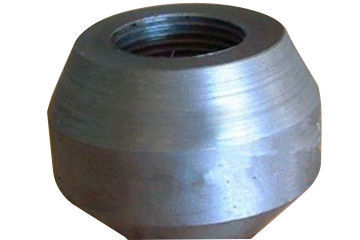

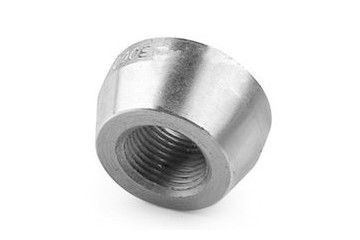

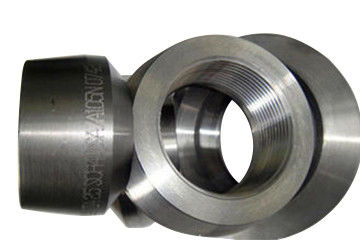

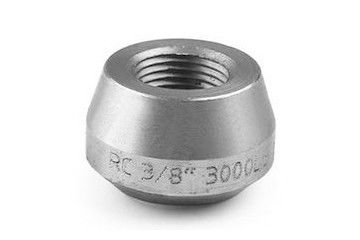

The Olet is mainly used for the reinforcement type pipe fittings of branch connection. The body is made of high-quality forgings with the same material as the pipe, including carbon steel, alloy steel, stainless steel, etc. The Olet and the main pipe are welded. There are three types of connection with the Olet or other pipes, instruments and valves: butt welding, socket welding and threaded connection. The branch header provides a branch from a large-diameter pipe to a small-diameter pipe. The pipe on which the branch is connected is called the main pipe, and the pipe on which the branch is connected is called the Olet. Branch connections have parameters such as size, type, bore diameter and pressure rating.
Standard: MSS sp-97, GB / t19326
Material: carbon steel, alloy steel, stainless steel
Size range: DN 6-150
Pressure range: 3000 × 3 and 6000 × 3.
Thickness: STD, XS and sch160
Length: from 3.1/2 inch to 6.1/2 inch
Surface treatment: anti-oil; anti-painting
End type: socket or external thread
Others: The base of the threaded Olet is the same as the butt welding Olet, but its branch connection adopts threaded connection and does not need welding. Butt welding Olet is the most common branch connector. Its end is beveled and connected with straight pipe by butt welding, so it is considered as a butt welding pipe piece. The design of butt welding Olet can minimize the stress concentration and provide overall reinforcement. The base of Olet is the same as that of butt welding branch, but its branch connection adopts socket welding connection. Miter branch is used for 45 ° branch.
Butt welding, socket welding and threaded connection can be used for connection with Olet. Elbow branch tables are used to provide branch connections on long radius elbows or short radius elbows. Butt welding, socket welding and threaded connection can be adopted for the connection of elbow Olet. Short Olet is often used for valve installation and exhaust. The shape of embedded socket is wavy, and it is reinforced as a whole. It is butt welded with Olet and is commonly used in low-pressure pipeline.
|
Nominal diameter of main pipe |
Nominal diameter of branch pipe |
Pressure rating |
||||||||||||
|
L |
D1/min |
D2/rnin |
E |
d3 |
J/min |
|||||||||
|
DN |
NPS |
DN |
NPS |
3000 |
6000 |
3000 |
6000 |
3000 |
6000 |
3000 |
6000 |
3000 |
6000 |
|
|
8^900 |
1/4~36 |
6 |
1/8 |
19 |
— |
27 |
一 |
22 |
— |
15.9 |
— |
6.1 |
一 |
6.4 |
|
10^900 |
3/8~36 |
8 |
1/4 |
19 |
一 |
27 |
一 |
22 |
一 |
15.9 |
一 |
8.5 |
一 |
8.1 |
|
15^900 |
1/2~36 |
10 |
3/8 |
21 |
— |
30 |
— |
25 |
— |
19.1 |
— |
11.8 |
— |
9.1 |
|
20^900 |
3/4~36 |
15 |
1/2 |
25 |
32 |
38 |
45 |
33 |
42 |
23.8 |
19.1 |
15 |
11 |
10.9 |
|
25^900 |
1~36 |
20 |
3/4 |
27 |
37 |
47 |
52 |
39 |
48 |
30.2 |
25.4 |
20.2 |
14.8 |
12.7 |
|
32^900 |
5/4~36 |
25 |
1 |
33 |
40 |
56 |
63 |
48 |
58 |
36.5 |
33.3 |
25.9 |
19.9 |
14.7 |
|
40^900 |
3/2~36 |
32 |
1. 1/4 |
33 |
41 |
66 |
72 |
58 |
67 |
44.5 |
38.1 |
34.3 |
28.7 |
17 |
|
50^900 |
2~36 |
40 |
1. 1/2 |
35 |
43 |
75 |
83 |
64 |
77 |
50.8 |
49.2 |
40.1 |
33.2 |
17.8 |
|
65^900 |
5/2~36 |
50 |
2 |
38 |
52 |
90 |
104 |
77 |
93 |
65.1 |
69.9 |
51.7 |
42.1 |
19 |
|
80^900 |
3~36 |
65 |
2. 1/2 |
46 |
— |
105 |
— |
94 |
— |
76.2 |
— |
61.2 |
— |
23.6 |
|
100^900 |
4~36 |
80 |
3 |
51 |
— |
124 |
— |
114 |
— |
93.7 |
— |
76.4 |
— |
25.9 |
|
125^900 |
5~36 |
100 |
4 |
57 |
一 |
154 |
一 |
140 |
一 |
120.7 |
一 |
100.7 |
一 |
27.7 |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized
Our factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
