Product Details:
|
| Material: | Carbon Steel | Connection: | Welding |
|---|---|---|---|
| Size: | 1/2"-4 8" | Application: | Connect Pipes |
| Standard: | DIN,ANSI,ASME,GB | Thickness: | 2mm-50mm |
| Highlight: | Carbon Steel Pipe Fittings Elbow,SCH80 Pipe Fittings Elbow,Pipes Elbow For Connection |
||
Carbon steel elbow is mainly used for the connection of pipe bends, which can connect two pipes with the same diameter. According to different connection methods, it can be divided into socket, screw thread, welding and other methods. The production process of elbow is complex, so we should master certain skills.
Thickness:Sch10-Sch160 XXS
Elbow:30° 45° 60° 90° 180°,etc
Material:A234 WPB | A420 WPL6
Size:1/2"-36" seamless, 26"-110" welded
Standard:ASME/ANSI B16.5/16.36/16.47A/16.47B

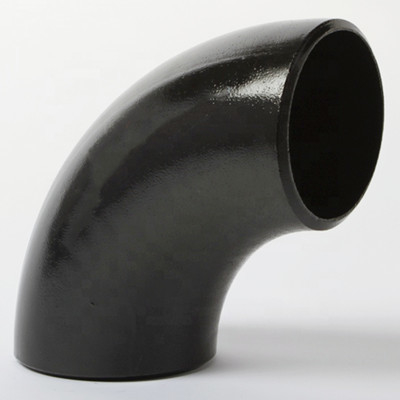

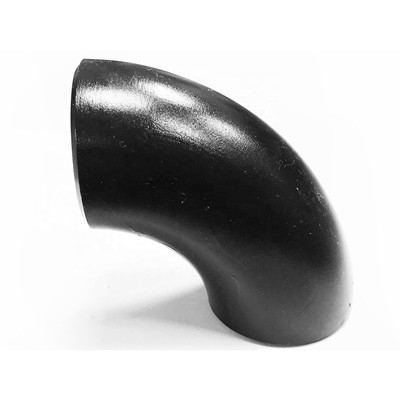

Carbon Steel A234 WPB 1-1/2'' SCH80 Carbon steel elbow technical data sheet as below:
| Nominal diameter | outside diameter | Dimension from center to end face | Center to center dimension | Back to end dimension | |||||
| 45° | 90° | 180° | 180° | ||||||
| Series A | Series B | Short radius | Long radius | Short radius | Long radius | Short radius | Long radius | Short radius | |
| 15 | 21.3 | 18 | 16 | 38 | - | 76 | - | 48 | - |
| 20 | 26.9 | 25 | 16 | 38 | - | 76 | - | 51 | - |
| 25 | 33.7 | 32 | 16 | 38 | 25 | 76 | 51 | 56 | 41 |
| 32 | 42.4 | 38 | 20 | 48 | 32 | 95 | 64 | 70 | 52 |
| 40 | 48.3 | 45 | 24 | 57 | 38 | 114 | 76 | 83 | 81 |
| 50 | 60.3 | 57 | 32 | 76 | 51 | 152 | 112 | 106 | 100 |
| 65 | 76.1 | 76 | 40 | 95 | 64 | 191 | 127 | 132 | 121 |
| 80 | 88.9 | 89 | 47 | 114 | 76 | 229 | 152 | 159 | 159 |
| 100 | 114.3 | 108 | 63 | 152 | 112 | 305 | 203 | 210 | 197 |
Carbon steel elbow, In the push production process, most of them will adopt medium frequency induction heating technology, which is the latest high-efficiency and energy-saving process. When producing large-diameter elbows, a thermal insulation sensor needs to be added in the carbon steel reducing forming area to prevent the steel pipe from shrinking under the ambient temperature. This combination is common in the production of large diameter pipes, and it is also effective in the production of stainless steel elbows.
For low carbon steel elbow, it is necessary to add an appropriate amount of carbon element, which can make the elbow harder and reduce the plasticity. Carbon steel elbow has strong compressive capacity and is the best choice for connecting pipes.
Carbon steel elbow is a common pipe fitting, which plays a certain role in traditional industries, such as agriculture, chemical industry, building materials and other industries, and can affect the development of these industries to a certain extent. At the same time, it can also be used in industries with serious wear and tear, such as electricity, steel, cement, machinery and so on.
