Product Details:
|
| Material: | Plastic | Technics: | Forged |
|---|---|---|---|
| Size: | DN10-200 | Standard: | ANSI,ASME,DIN |
| Application: | Pipeline,Gas/oil/water | Packing: | Carton And Pallet |
| High Light: | SCH40 HDPE Pipe Compression Fittings,DN20 HDPE Pipe Compression Fittings,SCH40 HDPE Tee |
||

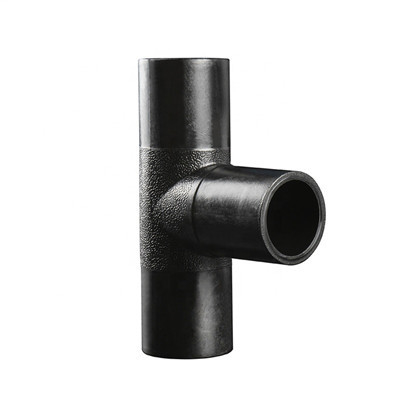

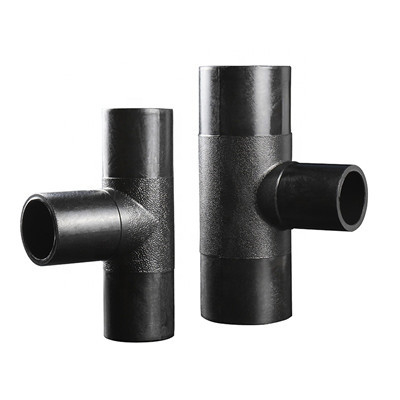

HDPE tee is a pipe fitting made of non-polar thermoplastic resin with high crystallinity. The appearance of original HDPE is milky white and translucent to a certain extent in its thin section. PE has excellent resistance to most domestic and industrial chemicals.
Diameter:Dn20-630mm
Length:As Standard
Thickness:As Satandard
Standard:ISO4427 / EN12201
Processing Service:Moulding, Cutting
SCH40 DN20-110 hdpe pipe compression fittings HDPE tee technical data sheet as below:
| Nominal IPS | A | B | C | D | E | Weight |
| Pipe Size | inches | inches | inches | inches | inches | lbs. |
| 3" | 11.81 | 5.91 | 0.21 | 3.50 | 3.54 | 1.45 |
| 4" | 13.78 | 6.89 | 0.26 | 4.50 | 3.94 | 2.58 |
| 6” | 18.11 | 9.06 | 0.39 | 6.63 | 4.72 | 7.24 |
| 8" | 23.62 | 11.81 | 0.51 | 8.63 | 5.71 | 16.60 |
| 10" | 27.56 | 13.78 | 0.63 | 10.75 | 6.30 | 28.90 |
| 12" | 31.57 | 15.97 | 0.75 | 12.75 | 7.52 | 45.32 |
HDPE tee is made of pure polyethylene, which has excellent low temperature resistance, good flexibility, impact resistance, wear resistance, smooth inner wall and improved medium mass flow rate.
Designed and produced according to national standards, with high interface strength. Hot melt connection with the same type of pipe, easy installation. The connection is firm and watertight.
The use of high-density polyethylene production, strict screening of raw materials and the production of advanced equipment and technology ensure that the pressure of 16 kg of pipe fittings is more safe and assured.
HDPE tee is generally used in the material and liquid transmission pipeline of chemical industry, chemical fiber, food, forestry, printing and dyeing, pharmacy, light industry, papermaking, metallurgy and other industries.
