Product Details:
|
| Shape: | Customer's Request | Connection: | Butt-Welding |
|---|---|---|---|
| Size: | 1/2"-48",1/2''-72' | Standard: | ANSI,ASME,JIS,DIN |
| Usage: | Oil Gas Water Industrial | Packing: | In Wooden Cases Or Pallets |
| High Light: | ASME B16.5 Carbon Steel Flange,48 Inch Carbon Steel Flange,1/2 Inch Carbon Steel Flange |
||
Carbon steel flange, like other flanges, is mainly used in the connection and installation of pipelines. It is an important connection mode in pipeline construction. It is mainly used to connect the bridge between pipes. First fix the two pipes on a flange, then add flange gasket between the two flanges and fasten them together with bolts, so as to complete the connection.
Carbon steel flange has strong wear resistance and corrosion resistance in application. The microhardness is hv1000-1500. It has strong wear resistance, and its wear resistance is better than that of ordinary inferior flanges.
Connection: Weldimg

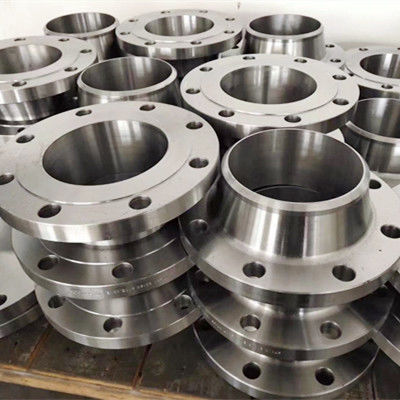

Shape: Circle Weld Neck Flange
Thickness: Sch10-XXS(2-60mm)
Standard: ANSI, DIN, GB, ISO, JIS,
Flange material: Carbon Steel / Q235
Class: 150LB/300LB/600LB/900LB/2500LB
1/2inch-48inch ASME B16.5 Carbon Steel A105 Carbon steel flange technical data sheet as below:
| DN | Pipe outer diameter A1 | Connection size | Flange thickness | |||||
| A | B | D | K | L | M | TH | C | |
| 15 | 21.3 | 18 | 95 | 65 | 14 | 4 | M12 | 14 |
| 20 | 26.9 | 25 | 105 | 75 | 14 | 4 | M12 | 16 |
| 25 | 33.7 | 32 | 115 | 85 | 14 | 4 | M12 | 16 |
| 32 | 42.4 | 38 | 140 | 100 | 18 | 4 | M16 | 18 |
| 40 | 48.3 | 45 | 150 | 110 | 18 | 4 | M16 | 18 |
| 50 | 60.3 | 57 | 165 | 125 | 18 | 4 | M16 | 20 |
| 65 | 76.1 | 76 | 185 | 145 | 18 | 4 | M16 | 20 |
| 80 | 88.9 | 89 | 200 | 160 | 18 | 8 | M16 | 20 |
| 100 | 114.3 | 108 | 220 | 180 | 18 | 8 | M16 | 22 |
| 125 | 139.7 | 133 | 250 | 210 | 18 | 8 | M16 | 22 |
| 150 | 168.3 | 159 | 285 | 240 | 22 | 8 | M20 | 24 |
Carbon steel flange is tight and reliable. It has two sealing surfaces. Various plastics are widely used as sealing surface materials, which has good sealing performance and can realize complete sealing. Because the carbon steel flange can be wiped during opening and closing, it can be used in the medium with suspended solid particles.
Carbon steel flange is mainly used in petrochemical, aerospace, medicine, power plant, shipbuilding, water treatment and other fields.
