Product Details:
|

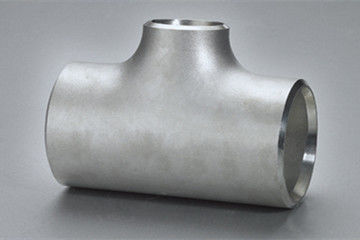

| Product Name: | Stainless Steel Tee | Material: | Stainless Steel |
|---|---|---|---|
| Type: | Tee | Connection: | Welding |
| Technics: | Butt Weld | Standard: | DIN, ANSI, ASTM |
| Size: | 1/8"~2",1/2' ~ 6' | Application: | Petroleum,Chemical,Construction |
| Highlight: | ASTM Stainless Steel Pipe Tee Fittings,Petroleum Buttweld Pipe Tee Fittings,Buttweld Stainless Steel Pipe Fittings |
||
Stainless steel tee will be used in today's building construction, and many of these pipe fittings are used outdoors, whether in the installation or in the use process, weather and environmental changes have a great impact on the tee. Especially for the construction and installation, it is very likely to encounter the construction in rainy season.
Stainless steel tee, Whenever the construction is in rainy season, it is better to prepare the relevant drainage ditch in advance, and prepare some pumping equipment in advance, so as to prevent some floating pipe accidents. After the construction is completed, these projects should be reasonably disposed.
Stainless steel pipe tee fittings Stainless steel tee technical data sheet as below:
| Nominal Diameter | Outside Diameter | Center to End | |||||
| D1 | D2 | ||||||
| DN | NPS | Series A | Series B | Series A | Series B | C | M |
| 15x15x15 | 1/2x1/2x1/2 | 21.3 | 18 | 21.3 | 18 | 25 | 25 |
| 15x15x10 | 1/2x1/2x3/8 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
| 15x15x8 | 1/2x1/2x1/4 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
| 20x20x20 | 3/4x3/4x3/4 | 26.9 | 25 | 26.9 | 25 | 29 | 29 |
| 20x20x15 | 3/4x3/4x1/2 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
| 20x20x10 | 3/4x3/4x3/8 | 26.9 | 25 | 17.3 | 14 | 29 | 29 |
| 25x25x25 | 1x1x1 | 33.7 | 32 | 33.7 | 32 | 38 | 38 |
| 25x25x20 | 1x1x3/4 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
| 25x25x15 | 1x1x1/2 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
| 32x32x32 | 1.1/4x1.1/4x1.1/4 | 42.4 | 38 | 42.4 | 38 | 48 | 48 |
| 32x32x25 | 1.1/4x1.1/4x1 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
| 32x32x20 | 1.1/4x1.1/4x3/4 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
| 32x32x15 | 1.1/4x1.1/4x1/2 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
| 40x40x40 | 1.1/2x1.1/2x1.1/2 | 48.3 | 45 | 48.3 | 45 | 57 | 57 |
Standard:DIN, ANSI, ASTM
Size:1/8"~2",1/2' ~ 6'
Application:Petroleum,Chemical,Construction
Stainless steel tee, When the construction is carried out in the winter rainy season, there will be more things to pay attention to. In the use of asbestos cement interface, the temperature must have certain requirements, so the use of hot water mixing effect will be better. If the temperature is very low, even if there are construction conditions, the processing of some of the above materials can not achieve the best effect, so it is best to delay the construction to ensure the quality of the project.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
