Product Details:
|
| Product Name: | Alloy Elbow | Standard: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Technics: | Hot Pushing | Size: | 1/2"~48" |
| Usage: | Oil Gas Water Industrial | Packing: | Pallet/plywood Case |
| High Light: | ANSI Elbow Alloy Pipe Fittings,DN32 Alloy Pipe Fittings,Hot Pushing 90 Degree Elbow |
||

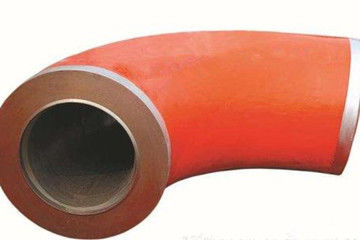

Alloy elbow is a kind of connecting pipe fitting used in pipe installation, which is used to connect pipe bends. Connect two pipes with the same nominal diameter to make a 90 ° turn. Alloy elbow is a general term for a variety of elbows. It has a variety of materials, such as carbon steel, manganese steel, nickel steel, etc.
Alloy elbow adopts hot push forming and stamping forming process. The hot push forming process has the advantages of beautiful appearance, uniform wall thickness and continuous operation, which is suitable for mass production. The elbow made by stamping process has beautiful appearance, uniform wall thickness and small size deviation, but it is not suitable for mass production.
Alloy Pipe Fittings Alloy elbow technical data sheet as below:
| DN | Outside diameter | 90 degree elbow | ||
| A series | B series | Long radius | Short radius | |
| 15 | 213 | 18 | 38 | - |
| 20 | 26.9 | 25 | 38 | - |
| 25 | 33.7 | 32 | 38 | 25 |
| 32 | 42.4 | 38 | 48 | 32 |
| 40 | 483 | 45 | 57 | 38 |
| 50 | 603 | 57 | 76 | 51 |
| 65 | 76.1(73) | 76 | 95 | 64 |
| 80 | 88.9 | 89 | 114 | 76 |
| 100 | 1143 | 108 | 152 | 2 |
Standard:GB / ANSI /JIS / DIN
Technics:hot pushing
Size:1/2"~48"
Alloy elbow is widely used. Ordinary alloy elbow made of bronze is more common in general water pipes, but with the improvement of living standards, many water pipes use stainless steel elbow. Alloy elbow made of manganese steel is usually used in concrete pipeline, slurry pipeline and other pipelines with serious wear and consumption due to its excellent performance of bearing impact, extrusion and material wear. The high manganese steel alloy elbow is used in the pipeline with intense fluid flow and strong impact; the nickel steel alloy elbow is usually used in the normal temperature pipeline with high concentration of oxidizing acid; the martensite alloy elbow has high high temperature strength, oxidation resistance and steam corrosion resistance under 650 ℃, but the weldability is poor. Therefore, it is often used in high temperature steam pipeline and water gas pipeline.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
