Product Details:
|
| Product Name: | Carbon Steel Reducer | Material: | Carbon Steel |
|---|---|---|---|
| Standard: | GB / ANSI /JIS / DIN | Connection: | Welding |
| Size: | 1/2"-4 8" | Usage: | Oil Gas Water Industrial |
| Highlight: | Concentric Carbon Steel Reducer,Eccentric Carbon Steel Reducer,ISO9001 Carbon Steel Reducer |
||

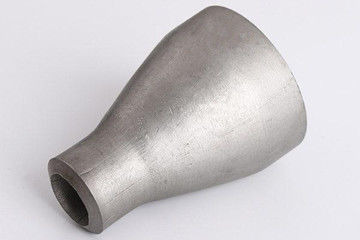

Carbon steel reducer is one of the chemical pipe fittings, which is used to connect two different pipe diameters. It is divided into concentric reducer and eccentric reducer. The roundness of reducer shall not be greater than 1% of the outer diameter of corresponding end, and the allowable deviation shall be ± 3mm.
Carbon steel reducer is a kind of pipe fitting used in pipe reducing position. The commonly used forming processes are necking pressing, expanding pressing or reducing plus expanding pressing. For some sizes of reducers, stamping can also be used.
Standard:GB / ANSI /JIS / DIN
Size:1/2"-4 8"
Usage:Oil Gas Water Industrial
Carbon steel reducer adopts reducing forming technology. The method is to put the tube blank with the same diameter as the large end of the reducing pipe into the forming die, and the metal moves along the die cavity and shrinks to form by pressing along the tube blank axial direction.
The tube blank with smaller diameter than the big end of the reducing pipe is used for expanding along the inner diameter of the tube blank with the internal die. The expanding process mainly solves the problem that the reducer with large diameter change is not easy to pass through the necking. Sometimes, according to the needs of material and product forming, the methods of expanding and reducing are combined.
Carbon Steel Pipe Fittings Carbon steel reducer technical data sheet as below:
| NPS | Outside Diameter at Bevel | |
| Large End | Small End | |
| 3/4X1/2 | 26.7 | 21.3 |
| 3/4X3/8 | 26.7 | 17.3 |
| 1x3/4 | 33.4 | 26.7 |
| lxl/2 | 33.4 | 21.3 |
| 1.1/4x1 | 42.2 | 33.4 |
| 1.1/4X3/4 | 42.2 | 26.7 |
| 1.1/4X1/2 | 42.2 | 21.3 |
| 1.1/2x1.1/4 | 48.3 | 42.2 |
| 1.1/2x1 | 48.3 | 33.4 |
| 1.1/2X3/4 | 48.3 | 26.7 |
| 1.1/2x1/2 | 48.3 | 21.3 |
| 2x1.1/2 | 60.3 | 48.3 |
| 2x1.1/4 | 60.3 | 42.2 |
| 2x1 | 60.3 | 33.4 |
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 30 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
