Product Details:
|
| Product Name:: | HDPE 90 ° Electrofusion Elbow | Standard:: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Specifications:: | L20mm~L110mm | Pressure Rating:: | 1.6Mpa |
| Application: | Pipeline,Gas/oil/water | Packing: | Canton And Polybag |
| High Light: | 90 ° electrofusion elbow,GB electrofusion elbow,1.6Mpa electrofusion elbow |
||

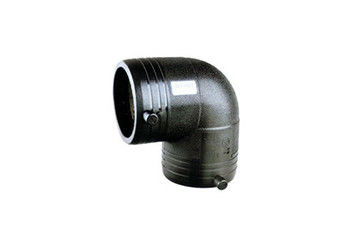

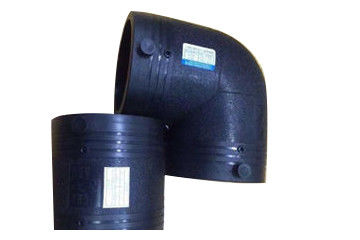

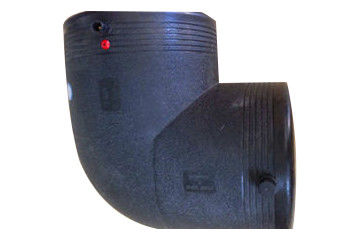

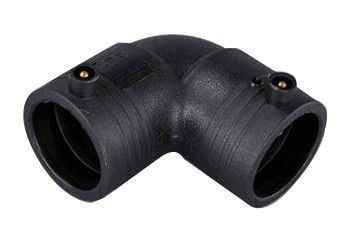

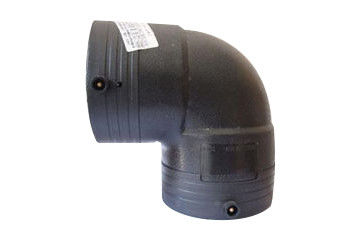

HDPE 90°electrofusion elbow adopts the wiring of resistance wire with national patent technology in the inner diameter of pipe fitting port.The resistance wire inside the elbow heats the HDPE material of pipes and pipe fittings and effectively welds them.Because of the price, the amount of hot-melt elbow is more than that of electric one.
4However, the electrofusion elbow plays an irreplaceable role in the embedded pipeline, engineering and maintenance.Especially in the construction, the electric melting elbow is less affected by the external environment and human factors.
Therefore, the electric melting elbow has good reliability and is more popular with users. More and more electrofusion pipe fittings are used in engineering.Due to the complex production technology, high cost and high sales price of the electric melting elbow.
Standard: GB / ANSI /JIS / DIN
Range: L20mm~L110mm
Packing: Canton and Polybag
No leakage at the joint: it is connected by electric fusion pipe fittings.The interface material, structure and pipe body of PE pipe system are identical, and the integration of joint and pipe is realized.Effective resistance to vibration and end load, no joint leakage.Excellent chemical resistance, can withstand ph2-ph12 chemical reagent.
HDPE electric melting elbow has good impact resistance and hammer is not damaged.The surface rigidity and scratch resistance of this material are very good because of its high crystallinity.There is no environmental stress cracking and the indoor environmental life is 50 years.
The electric melting elbow is non-toxic, tasteless and free of harmful gas when burning.Materials can be recycled and reused, saving resources, energy saving and emission reduction, in line with the sustainable development strategy.
External environment 90 ° electrofusion pe elbow technical data sheet as below:
| Specifications | L( mm) | L1( mm) | D( mm) | D1( mm) |
| De 50 | 83 | 47 | 66 | 50 |
| De 63 | 87 | 53 | 80 | 63 |
| De 75 | 100 | 58 | 94 | 75 |
| De 90 | 123 | 74 | 113 | 90 |
| De 110 | 140 | 78 | 140 | 110 |
| De 140 | 163 | 87 | 176 | 140 |
| De 160 | 174 | 100 | 197 | 160 |
| De 200 | 191 | 106 | 240 | 200 |
| De 250 | 253 | 132 | 308 | 250 |
| De 315 | 259 | 135 | 373 | 315 |
| De 400 | 348 | 143 | 472 | 400 |
Drainage pipeline system of hospital complex building, ward and laboratory.
The school's laboratory, apartment building and comprehensive building set the drainage pipeline system of the scientific research center.
Drainage pipeline system of high-end hotels and business centers.
Drainage pipeline system for domestic wastewater and sewage of civil residential buildings and high-rise buildings.
It is used in factories, mines, enterprises and laboratories to discharge acid and alkali corrosive wastewater.
Rainwater drainage pipeline system of bridge, viaduct and high-speed railway.
Rainwater and sewage drainage pipeline system of exhibition hall, stadium, station, square, etc.
Replace the cast iron drainage pipe and the special drainage pipe for kitchen (oil) sewage.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 45days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
