Product Details:
|
| Product Name: | Ductile Iron Elbow | Standard: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Material: | Ductile Cast Iron | Technics: | Stamping And Welding |
| Size: | DN60mm-2000mm | Application: | Gas And Oil Pipes |
| Highlight: | Ductile Iron Elbow,Cast Ductile Iron Pipe Fittings,DN60mm Ductile Iron Elbow |
||

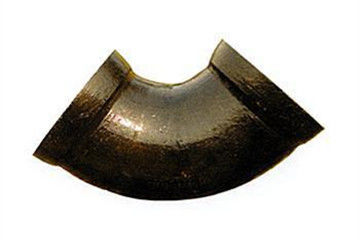

Ductile iron elbow is a kind of pipe fitting made by centrifugal nodular cast iron machine after adding spheroidizing agent with casting hot metal above 18. It is mainly used for the transportation of tap water, and it is the ideal material for water pipeline. Because the mechanical properties of the material itself have been better improved, with the nature of iron, steel properties. After annealing, the microstructure of spheroidal graphite cast iron pipe is ferrite and a small amount of pearlite, which has good mechanical properties, so it is also called cast iron pipe fittings.
Ductile Iron Pipe Fittings Ductile iron elbow technical data sheet as below:
| DN | Outside diameter | 90 degree elbow | ||
| A series | B series | Long radius | Short radius | |
| 15 | 213 | 18 | 38 | - |
| 20 | 26.9 | 25 | 38 | - |
| 25 | 33.7 | 32 | 38 | 25 |
| 32 | 42.4 | 38 | 48 | 32 |
| 40 | 483 | 45 | 57 | 38 |
| 50 | 603 | 57 | 76 | 51 |
| 65 | 76.1(73) | 76 | 95 | 64 |
| 80 | 88.9 | 89 | 114 | 76 |
| 100 | 1143 | 108 | 152 | 2 |
| 125 | 139.7 | 133 | 190 | 127 |
| 150 | 1683 | 159 | 229 | 152 |
| 200 | 219.1 | 219 | 305 | 203 |
| 250 | 273 | 273 | 381 | 254 |
| 300 | 323.9 | 325 | 457 | 305 |
Standard:GB / ANSI /JIS / DIN
Size:DN60mm-2000mm
Application:gas and oil pipes
Ductile iron elbow has excellent corrosion resistance, good ductility, good sealing effect and easy installation. It is mainly used for water supply, gas and oil transportation in municipal and industrial enterprises. It is the first choice of water supply pipe material with high cost performance.
Ductile iron elbow has more advantages than PE pipe. In terms of installation time, the installation of ductile iron pipe is simpler and faster than that of PE pipe, and the internal and external bearing pressure after installation is better; from the perspective of airtightness and anti-corrosion, the tightness of ductile iron pipe after installation is better, and the anti-corrosion performance can be improved by various anti-corrosion measures.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
