Product Details:
|
| Product Name: | HDPE Elbow | Standard: | GB / ANSI /JIS / DIN |
|---|---|---|---|
| Size: | 1/8"~6" | Color: | Black |
| Application: | Gas/oil/water | Packing: | Carton And Pallet |
| Highlight: | Elbow HDPE Pipe Fittings,JIS HDPE Pipe Fittings,1/8" HDPE Pipe Fittings |
||

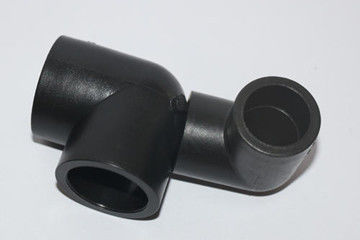

HDPE elbow is made of pure polyethylene, which has excellent low temperature resistance, good flexibility, impact resistance, wear resistance, smooth inner wall, and improved medium mass flow rate. According to the national standard design, production, high interface strength. With the same type of pipe hot-melt connection, easy to install. The connection is firm without water leakage. In the production process, strict selection of raw materials and advanced equipment and process production ensure that the pressure of pipe fittings is 16 kg, and the use is more secure.
HDPE Pipe Fittings HDPE elbow technical data sheet as below:
| Specification and dimension of electric-melt 45° elbow | |||
| Product specification D/mm | D/mm | L/mm | A/mm |
| 45°L 50 | 50 | 160 | 60 |
| 45°L 63 | 63 | 165 | 63 |
| 45°L 90 | 90 | 181 | 72 |
| 45°L110 | 110 | 220 | 70 |
| 45°L160 | 160 | 255 | 70 |
| 45°L200 | 200 | 300 | 80 |
| 45°L250 | 250 | 350 | 90 |
| 45°L315 | 315 | 416 | 100 |
Standard:GB / ANSI /JIS / DIN
Size:1/8"~6"
Application:Gas/oil/water
HDPE elbow has superior physical properties: good flexibility and high wear resistance. It is not easy to breed bacteria and meet the standard. It has the advantages of long service life, large flow capacity, smooth inner wall, small flow resistance and less head loss than the steel pipe of the same specification. Compared with metal pipeline, it can reduce project investment. It is easy to install, reliable, light in weight, easy to handle and bend, simple in welding process and fast in construction.
HDPE elbow is mainly used in gas, oil, natural gas transmission and distribution pipeline. Urban and rural drinking water pipeline. Sewage pipeline, chemical, food, pharmaceutical, paper, metallurgy and other industries of liquid material transportation pipeline. Agricultural irrigation pipe. Post and telecommunications lines, power cable protection sleeve, etc.
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Our Steel flat factory have high ability for production, the delivery time is 35 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
